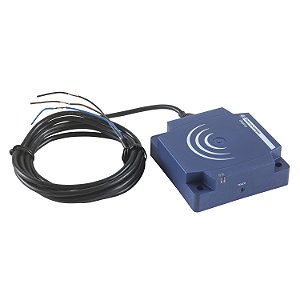

Sensor Indutivo Retangular Pnp Nf XS7J1A1PBL2 SCHNEIDER
Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco
Incluir no Orçamento
Estoque:
Disponível
Este sensor de proximidade indutivo retangular de uso geral é montável diretamente sobre uma superfície, com um único ponto de fixação de parafuso e é certificado pela C-Tick. Resistência mecânica e resistência química graças ao case PBT
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Device application
-
Sensor name
XS7
Sensor design
Flat form 8 x 22 x 8
Size
8 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NC
Output circuit type
DC
Discrete output type
PNP
Electrical connection
Cable
Cable length
2 m
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA DC with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Detection face
Frontal
Front material
PBT
Operating zone
0…2 mm
Differential travel
1...15% of Sr
Cable composition
3 x 0.11 mm²
Wire insulation material
PVC
Status LED
Output state: 1 LED (yellow)
Supply voltage limits
10…36 V DC
Switching frequency
<= 2000 Hz
Maximum voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Maximum delay first up
5 ms
Maximum delay response
0.1 ms
Maximum delay recovery
0.1 ms
Marking
CE
Depth
8 mm
Height
22 mm
Width
8 mm
Product certifications
UL
CSA
C-Tick
CSA
C-Tick
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.2 cm
Package 1 Width
9.5 cm
Package 1 Length
13.2 cm
Package 1 Weight
48.0 g
Unit Type of Package 2
S02
Number of Units in Package 2
16
Package 2 Height
15.0 cm
Package 2 Width
30.0 cm
Package 2 Length
40.0 cm
Package 2 Weight
1.134 kg
