2 Contatos Sinalizacao No Fechamento Ns 33883 SCHNEIDER

Código: 33883 Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

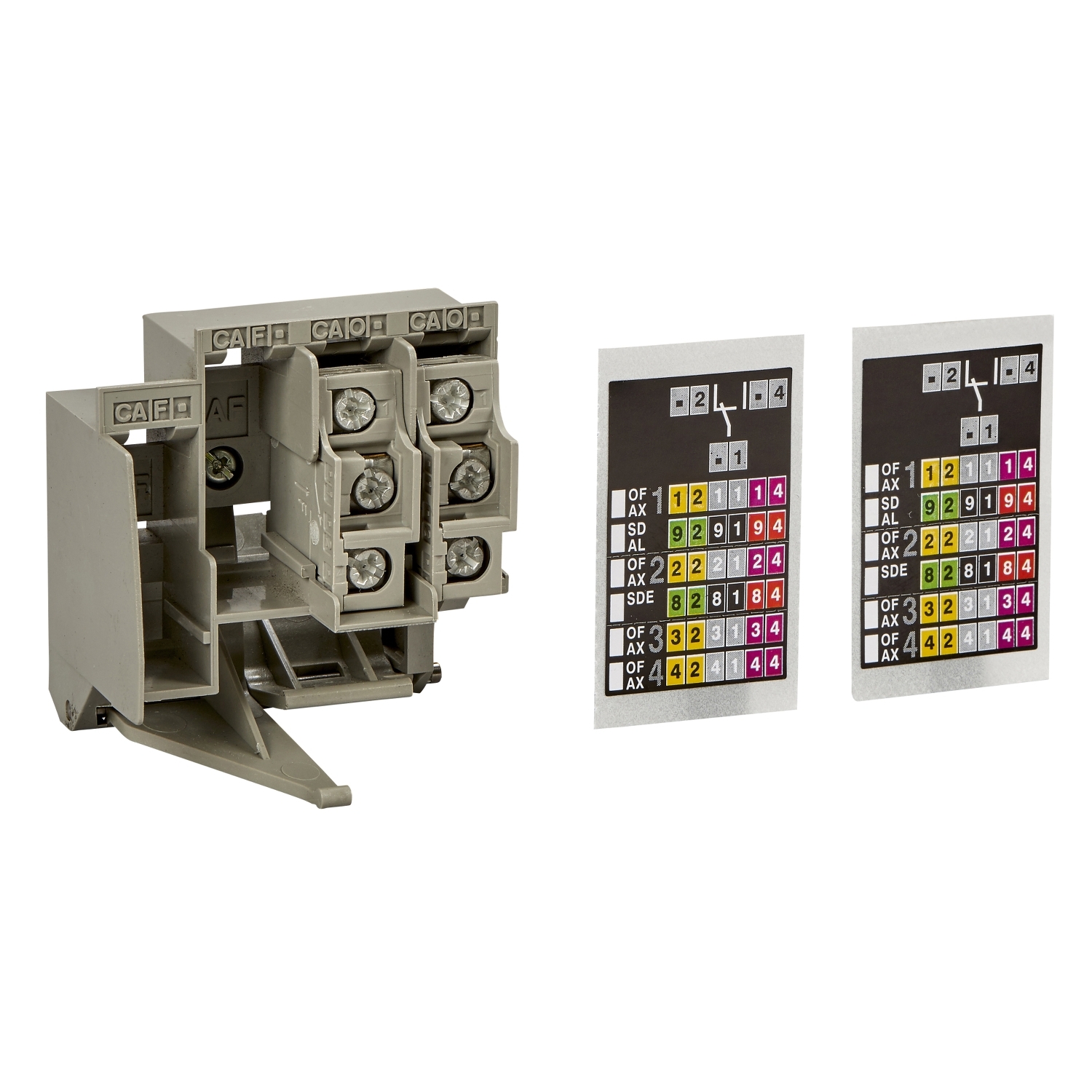

It is a single standard auxiliary contact that provides Early Make (CAF) remote information. The Early Make contact indicates the position of the rotary handle. It is used particularly to energize a control device prior to the circuit breaker closing (early make). The contact fits into the rotary handle (standard or extended version). This auxiliary has 2 common points changeover type contact with 2 normally open contact and 2 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC. Utilization categories are AC12/AC13/DC12/DC14. Compact NS 630b to 3200 can be equipped with 1 Early Break and 1 Early Make auxiliary contacts. It complies with IEC 60947-5-1 standard.
