2 Contatos Sinalizacao Na Abertura Ns 33882 SCHNEIDER

Código: 33882 Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

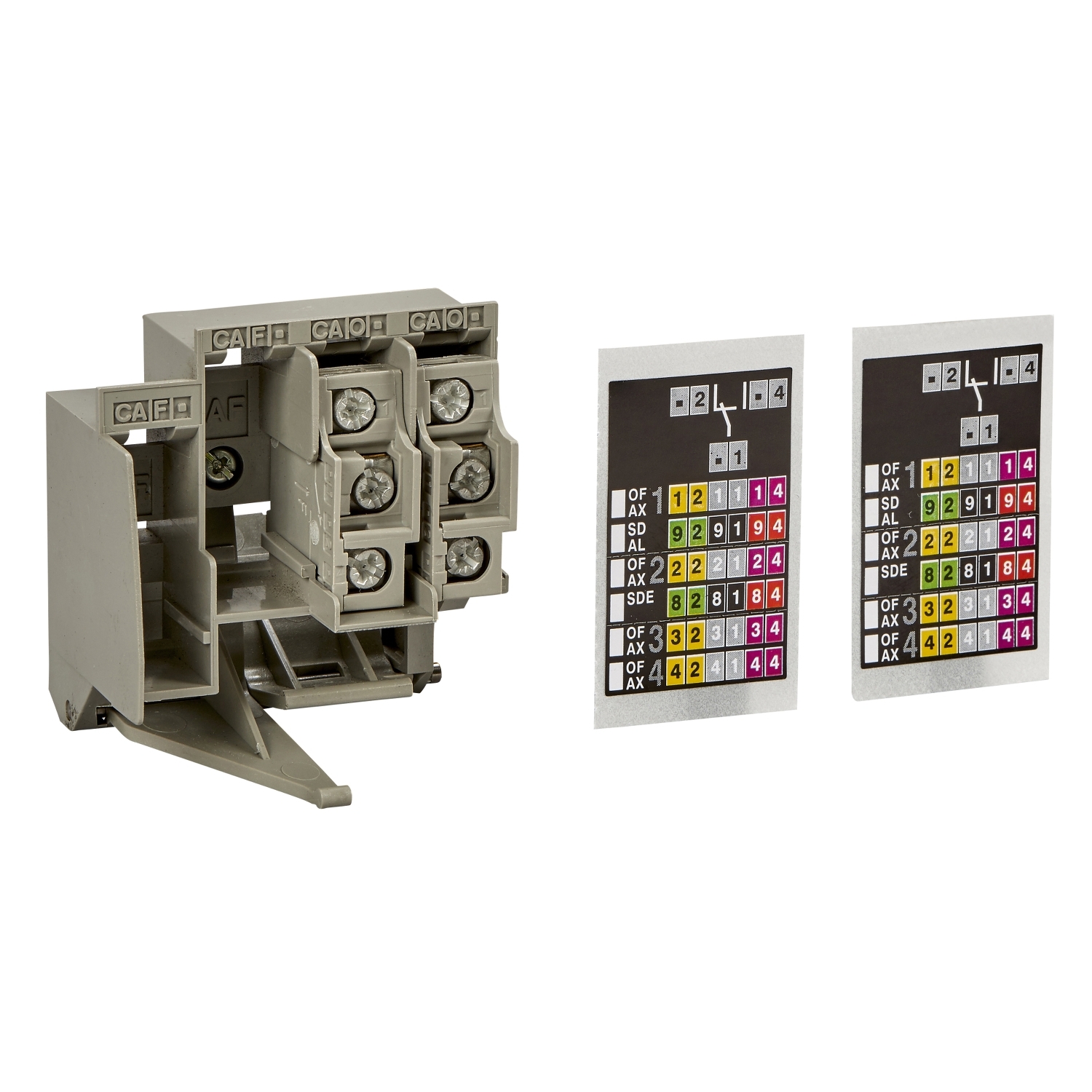

It is a single standard auxiliary contact that provides Early Break (CAO) remote information. The Early Break contact indicates the position of the rotary handle. It is used particularly for advanced opening of trip devices (early break). The contact fits into the rotary handle (standard or extended version). This auxiliary has 2 common points changeover type contact with 2 normally open contact and 2 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC. Utilization categories are AC12/AC13/DC12/DC14. Compact NS 630b to 3200 can be equipped with 1 Early Break and 1 Early Make auxiliary contacts. It complies with IEC 60947-5-1 standard.
