1 Contato Auxiliar De Avanco Fechamento LV432605 SCHNEIDER

Código: LV432605 Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

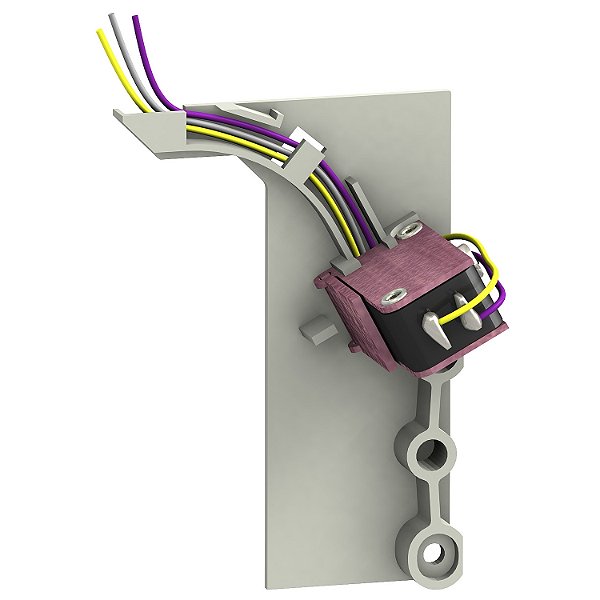

it is a single early break contact that indicates the position of the rotary handle for Compact NSX 400/630 and PowerPact Multistandard L circuit breakers. An early break contact (CAM), in conjunction with a rotary handle, can be used to anticipate device opening. The contact fits into the rotary handle unit. This auxiliary contact is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC. utilization categories are AC12/AC15/DC12/DC14. Compact NSX and PowerPact chassis can be equipped with 1 early break contact. It complies with IEC 60947-5-1 standard.
