Wireless Transmitter For Sensors And Switches XZBWE112A24 SCHNEIDER

Código: XZBWE112A24 Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

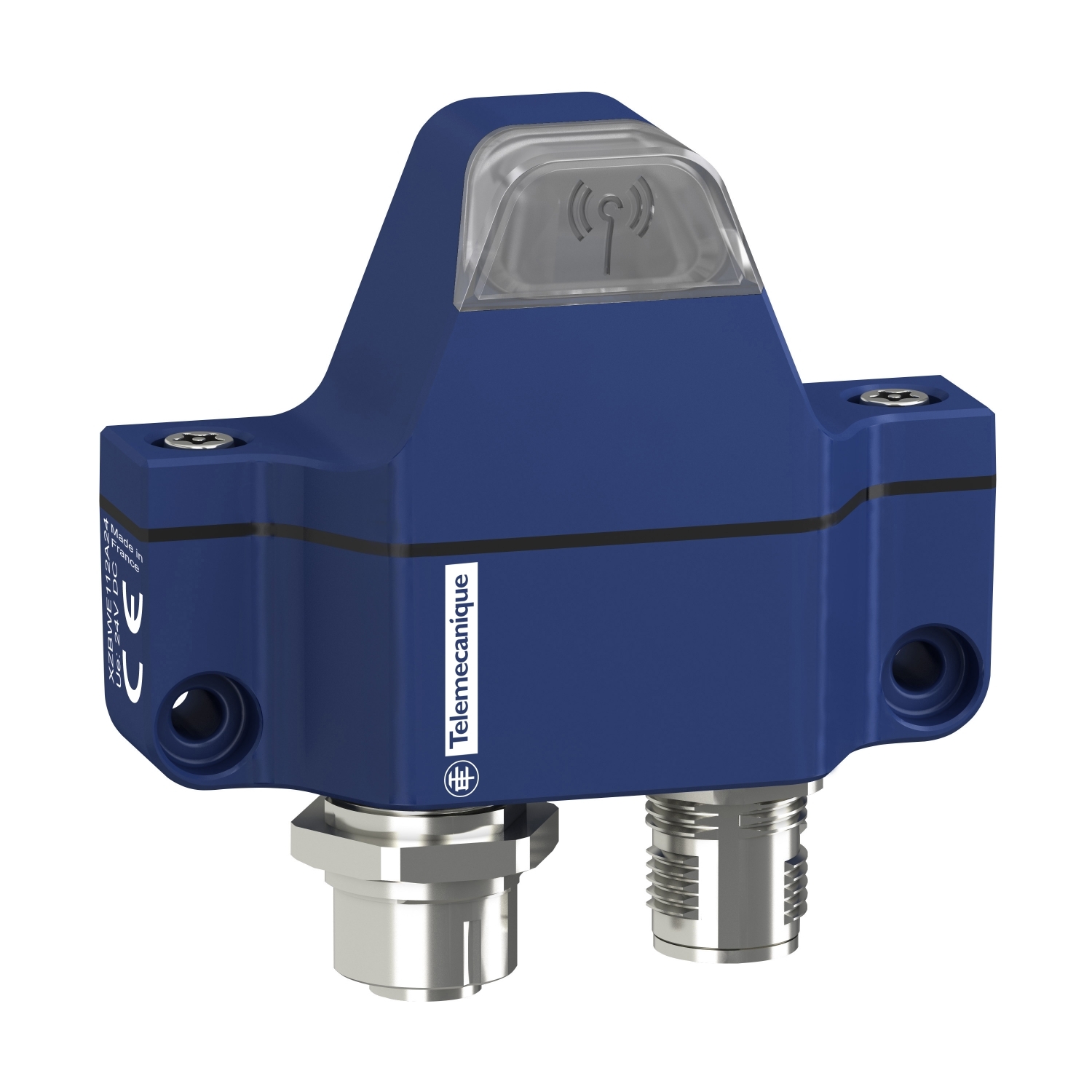

This product is part of the XZ range, an offer of radio transmitters. This product is a wireless transmitter for sensors and switches. The communication port protocol conforms to ZigBee IEEE 802.15.4. It has NPN or PNP for sensor discrete input and 1 LED green or orange for on/off sensor output. With external fuse and fast blow protection. It is furnished with 5-wire M12 female connector (sensor) and 4-wire M12 male connector (power supply) for electrical connection. It is a transmitter with a rated supply voltage of 24V DC, <15mA (-15% to 20%), a maximum supply current of 100mA at 24V without overload protection and a response time of <30ms. It is an IP55 rated product. Its dimensions are 68mm (Width) x 23mm (Depth) x 65mm (Height) and weighs 0.051kg. It is ideal for sensors and switches. This product is certified by CE. The range of machine wiring connectors and cordsets has been designed for optimal user-friendliness, simplifying connection and providing quick and safe reference identification. Improved connection of sensors to the enclosure.
