Sinalizador De Alarme Hrp 24Vdc 50168 SCHNEIDER

Clique no botão ao lado para assistir ao vídeo relacionado ao produto.

Assistir Vídeo

Sinalizador De Alarme Hrp 24Vdc 50168 SCHNEIDER

Código: 50168 Marca:

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Incluir no Orçamento Estoque: Disponível

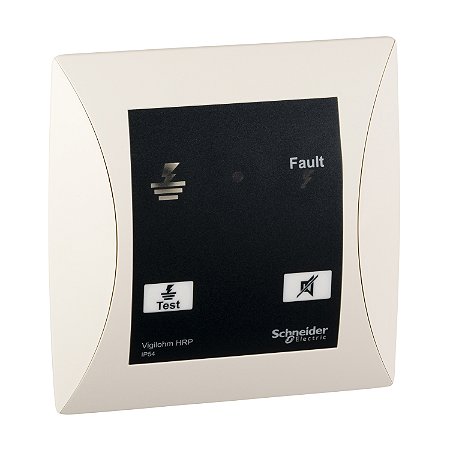

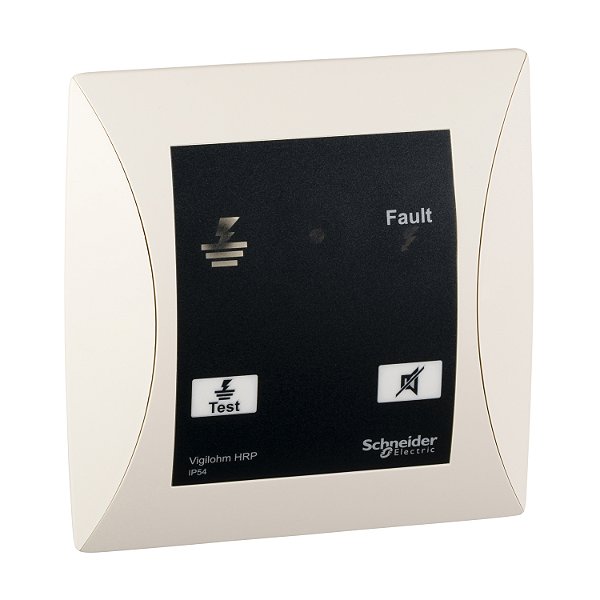

This panel belongs to the Vigilohm range designed to monitor ungrounded/IT electrical networks at feeder level, in accordance to installation and products standards. The HRP (Hospital Remote Panel) is an interface to be installed in a medical critical room such as an operating theater. It will inform in real time any insulation fault within the medical room, or electrical fault, like transformer overload and overheat. The HRP also allows to easily trigger the regular insulation test required by the IEC 60364-7-710 standard. The HRP works in association with an insulation monitor such as IM10-H, IM15H or IM20-H. The panel feature three indicators, for operation or fault, plus two push-buttons. The first one is to trigger the insulation test, the second push-button is associated to the buzzer stop. Ingress Protection of the panel is IP54, and the Impact resistance is IK08. Dimensions of the remote panel are 170mm in height, 170mm in width, 20mm in depth for a product weight of 500 grams.

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Incluir no Orçamento Estoque: Disponível
