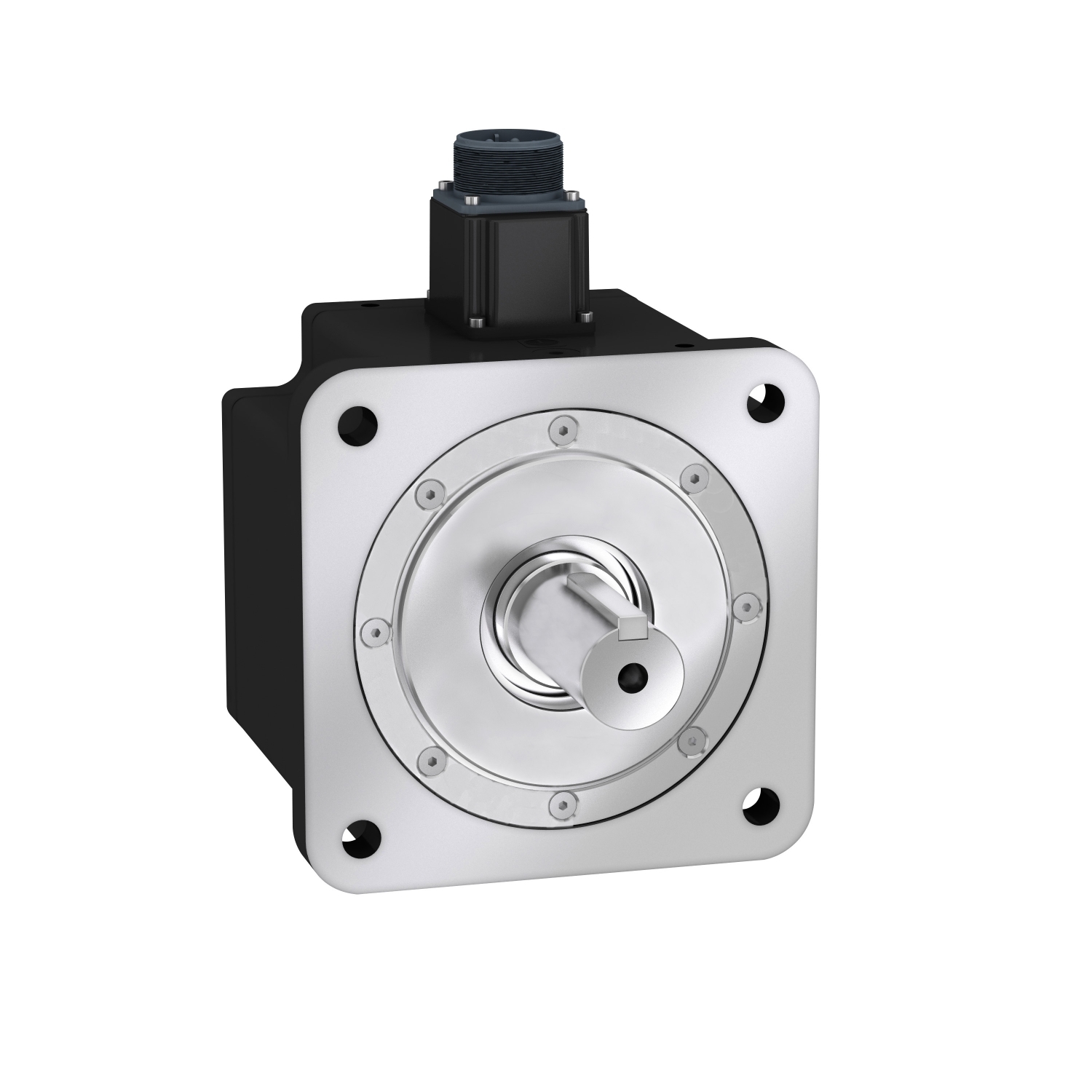

Servomotor De Média Inercia Com Flange De 180 Mm - 19.1 Nm/1000/1500 Rpm - Mono-Volta - Eixo Chaveado - Sem Freio - Ip 65/Ip 65 BCH2MR3013CA6C SCHNEIDER

Código: BCH2MR3013CA6C Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 3000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of torque (1000RPM/1500RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 16.49A and a continuous power of 3000W. The shaft dimensions are 35mm (Diameter) x 79mm (Length). It is furnished with MIL connector for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 202mm (Length) x 180mm (Width), centring collar dimensions are 4mm (Depth) x 114.3mm (Diameter) with 200mm circle diameter of the mounting hole. It weighs 18.5kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 180mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
