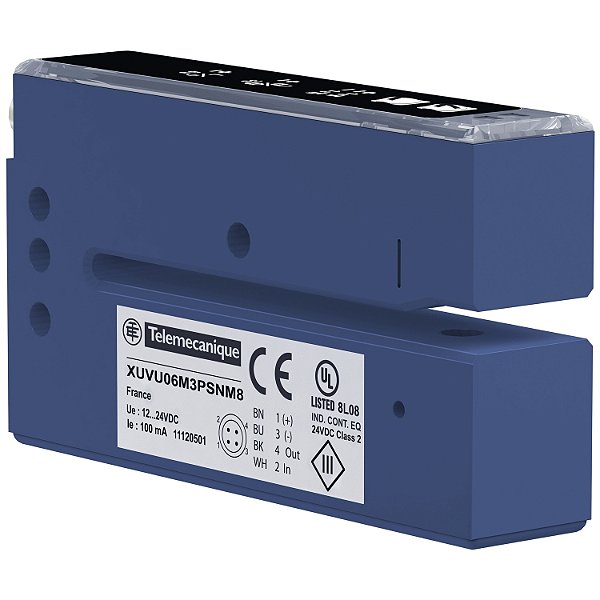

Sensor Ultrasonico Forquilha Abertura De 3Mm Npn Conector XUVU06M3NSNM8 SCHNEIDER

Código: XUVU06M3NSNM8 Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

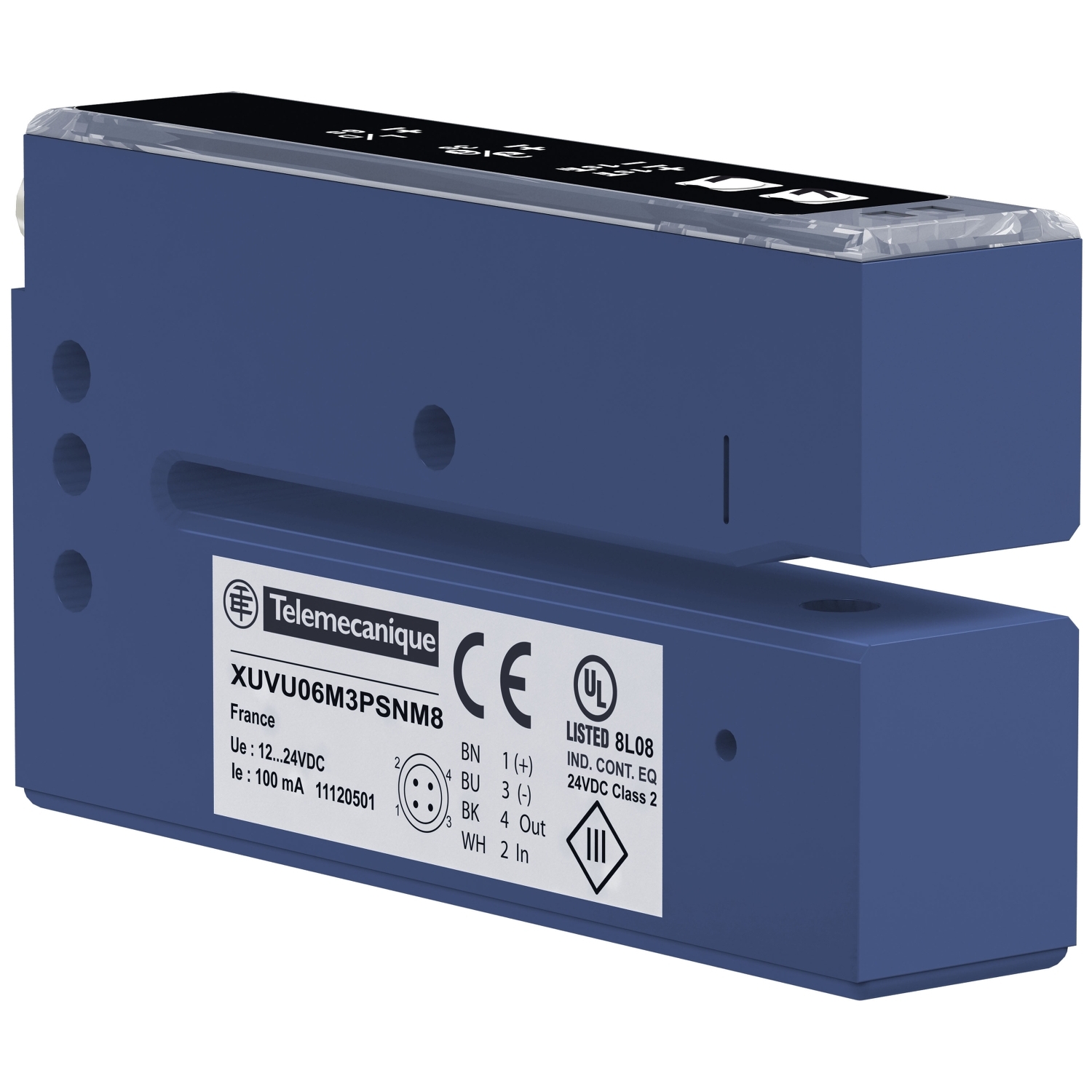

This product is part of the XU range, an offer of photoelectric sensors. This ultrasonic sensor has a fork design and a thru-beam detection system. This photoelectric sensor has a numeric potentiometer setting-up, 2 LEDs for output state, adjustment mode and keypad locking. With an accuracy of ±0.20mm at 120m/min. It is furnished with 4-pin M8 male connector for electrical connection and 4-wire 1 normally open or 1 normally closed programmable NPN solid state discrete output. It is a photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection and a switching frequency of ≤1500Hz. It is an IP65 rated product. The enclosure is made of zinc alloy with PC lens. Its dimensions are 18mm (Width) x 47mm (Depth) x 92.5mm (Height) and weighs 0.13kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. It is ideal for detection of transparent labels. This product is certified by CE and CULus.
