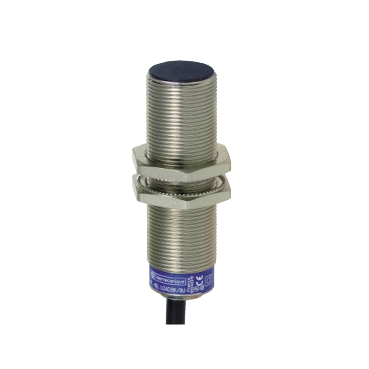

Sensor Indutivo M18P Sn=8Mm Nf Pnp XS618B1PBL2 SCHNEIDER

Código: XS618B1PBL2 Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

Este sensor de proximidade indutivo cilíndrico roscado de uso geral é montável embutido e possui um alcance de detecção maior. É montável diretamente sobre uma superfície ou suporte, graças à sua rosca externa e às porcas gêmeas, e é certificado pela CSA, UL. Latão niquelado resistente à corrosão e não magnético fornece blindagem magnética ao sensor: melhor precisão e imunidade a distúrbios magnéticos

Range of product

Telemecanique Inductive proximity sensors XS

Series name

General purpose

Sensor type

Inductive proximity sensor

Device application

Mobile equipment

Sensor name

XS6

Sensor design

Cylindrical M18

Size

62 mm

Body type

Fixed

Detector flush mounting acceptance

Flush mountable

Material

Metal

Type of output signal

Discrete

Wiring technique

3-wire

[Sn] nominal sensing distance

8 mm

Discrete output function

1 NC

Output circuit type

Discrete output type

PNP

Electrical connection

Cable

Cable length

2 m

[Us] rated supply voltage

12...48 V DC with reverse polarity protection

Switching capacity in mA

<= 200 mA DC with overload and short-circuit protection

IP degree of protection

IP68 double insulation conforming to IEC 60529
IP69K conforming to DIN 40050

Thread type

M18 x 1

Detection face

Frontal

Front material

PPS

Enclosure material

Nickel plated brass

Sensing range

> 4...8 mm

Operating zone

0…6.4 mm

Differential travel

1...15% of Sr

Cable composition

3 x 0.34 mm²

Wire insulation material

PVC

Status LED

Output state: 1 LED (yellow)

Supply voltage limits

10…58 V DC

Switching frequency

<= 1000 Hz

Maximum voltage drop

<2 V (closed)

Current consumption

<= 10 mA no-load

Maximum delay first up

10 ms

Maximum delay response

0.3 ms

Maximum delay recovery

0.7 ms

Marking

Threaded length

52 mm

Length

62 mm

Net weight

0.12 kg

Product certifications

UL
CSA
E2

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Vibration resistance

25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

Package 1 Height

4.200 cm

Package 1 Width

9.700 cm

Package 1 Length

13.000 cm

Package 1 Weight

106.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.376 kg

Sustainable offer status

Green Premium product

REACh Regulation

REACh Declaration

EU RoHS Directive

EU RoHS Declaration

Mercury free

Yes

RoHS exemption information

Yes

Environmental Disclosure

Product Environmental Profile

Circularity Profile

End of Life Information

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Warranty

18 months
