Sensor Fotoeletrico Prox Com Isol Na 0.1M XU8M18MA230K SCHNEIDER

Código: XU8M18MA230K Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

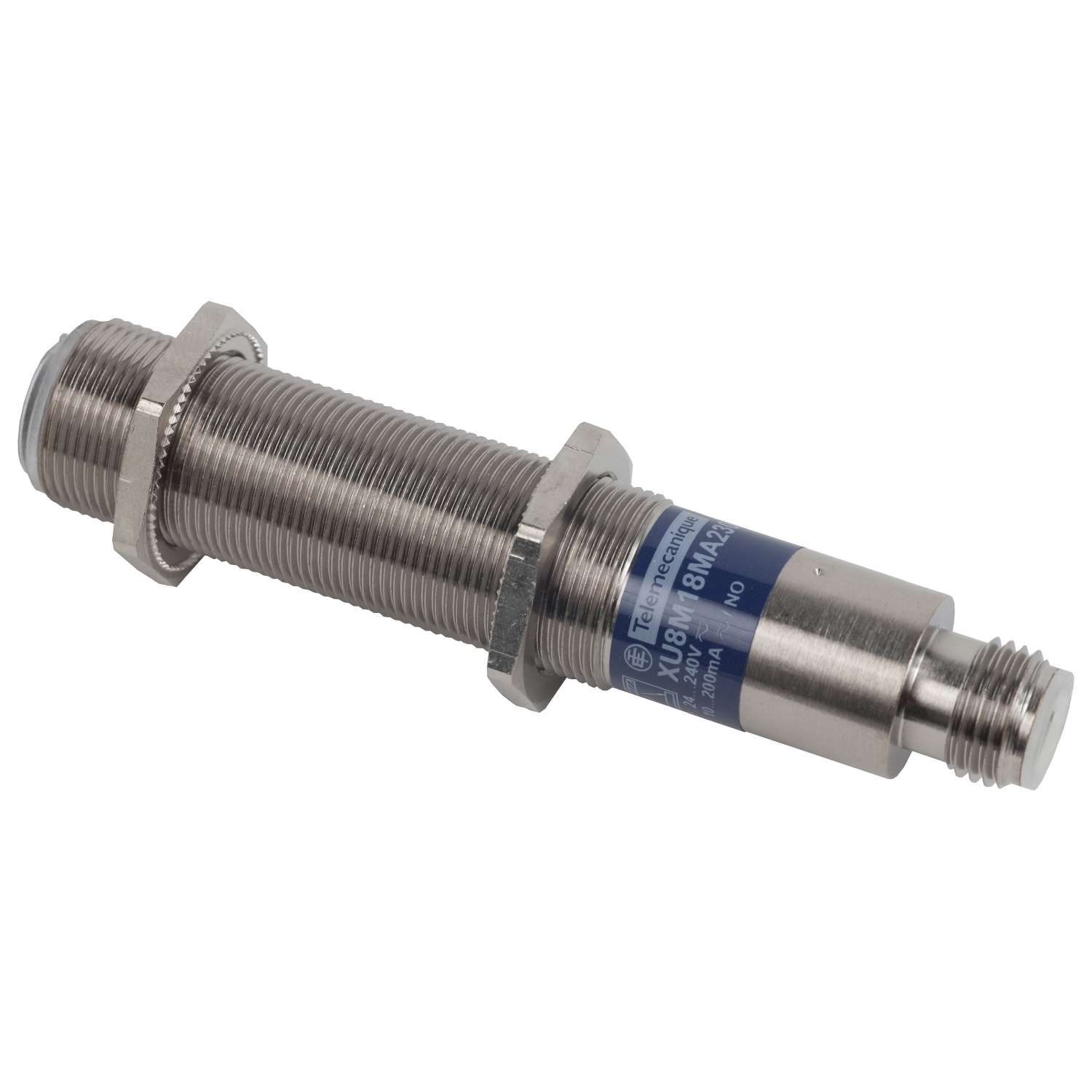

This product is part of the XU range, an offer of photoelectric sensors. This general purpose single mode photoelectric sensor in XU8 cylindrical M18 design. It has a diffuse detection system with background suppression. It supports nominal sensing distance of 0.12m diffuse with background suppression, with 1 NO discrete type of output signal. It is furnished with 3-pin 1/2-20 UNF male connector for electrical connection. It is an IP67 rated product. This photoelectric sensor has a rated supply voltage of 24V to 240V AC/DC, a maximum residual current of 1.5mA and a switching frequency of ≤25Hz. It has an infrared diffuse with background suppression emission and 1 LED for output state. The enclosure is made of nickel plated brass with PMMA lens. Its dimensions are 18mm (Diameter) x 95mm (Length) and weighs 0.075kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CSA, CE and UL.
