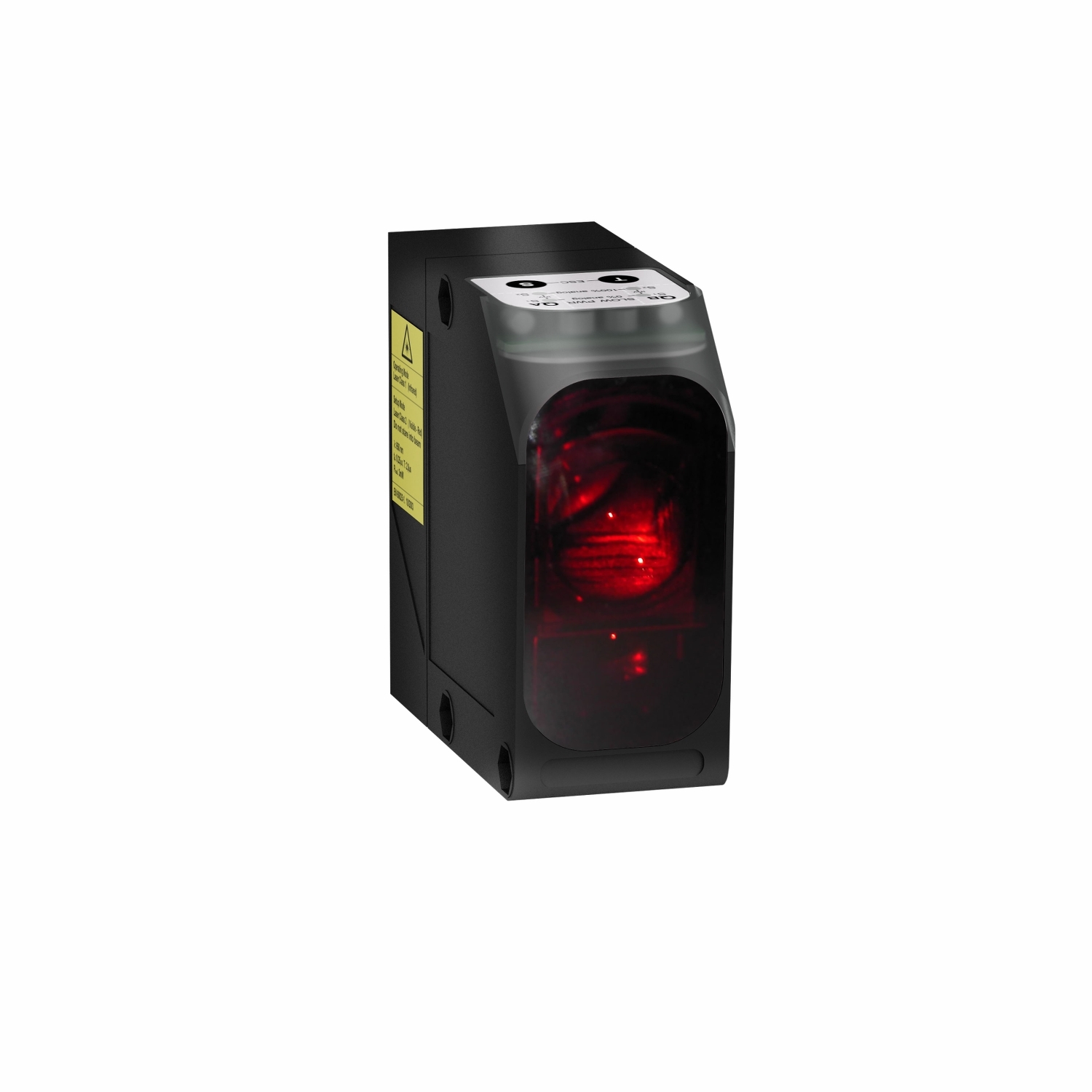

Sensor Fotoeletrico Laser Difuso Pnp Para 6M XUE5AA2NM12 SCHNEIDER

Código: XUE5AA2NM12 Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in XUE compact 90mm x 90mm sensor design. It has a diffuse detection system, parametering setting-up by buttons and ±≤40mm linearity. It supports 2 normally opened/normally closed programmable PNP discrete output. With 13ms at fast mode and 80ms at slow mode switching time. It is furnished with 5-pin M12 male connector for electrical connection. It has a LEDs for supply on, output, parametering and slow mode. It is a photoelectric sensor with a rated supply voltage of 24V DC with reverse polarity protection, a no-load current consumption of 125mA and an analogue output range of 4mA to 20mA. It is an IP67 rated product. The enclosure is made of ABS, anti-shock with PMMA lens. Its dimensions are 95mm (Length) x 42mm (Width) x 93mm (Height) and weighs 0.2kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE and CULus.
