Sensor Fotoelet Laser Difuso Bgs Sn=5M 1 Saida Pnp/Npn E Analog 0…10V Conec M12 XUK8TAE1MM12 APC

Código: XUK8TAE1MM12 Marca: APC

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

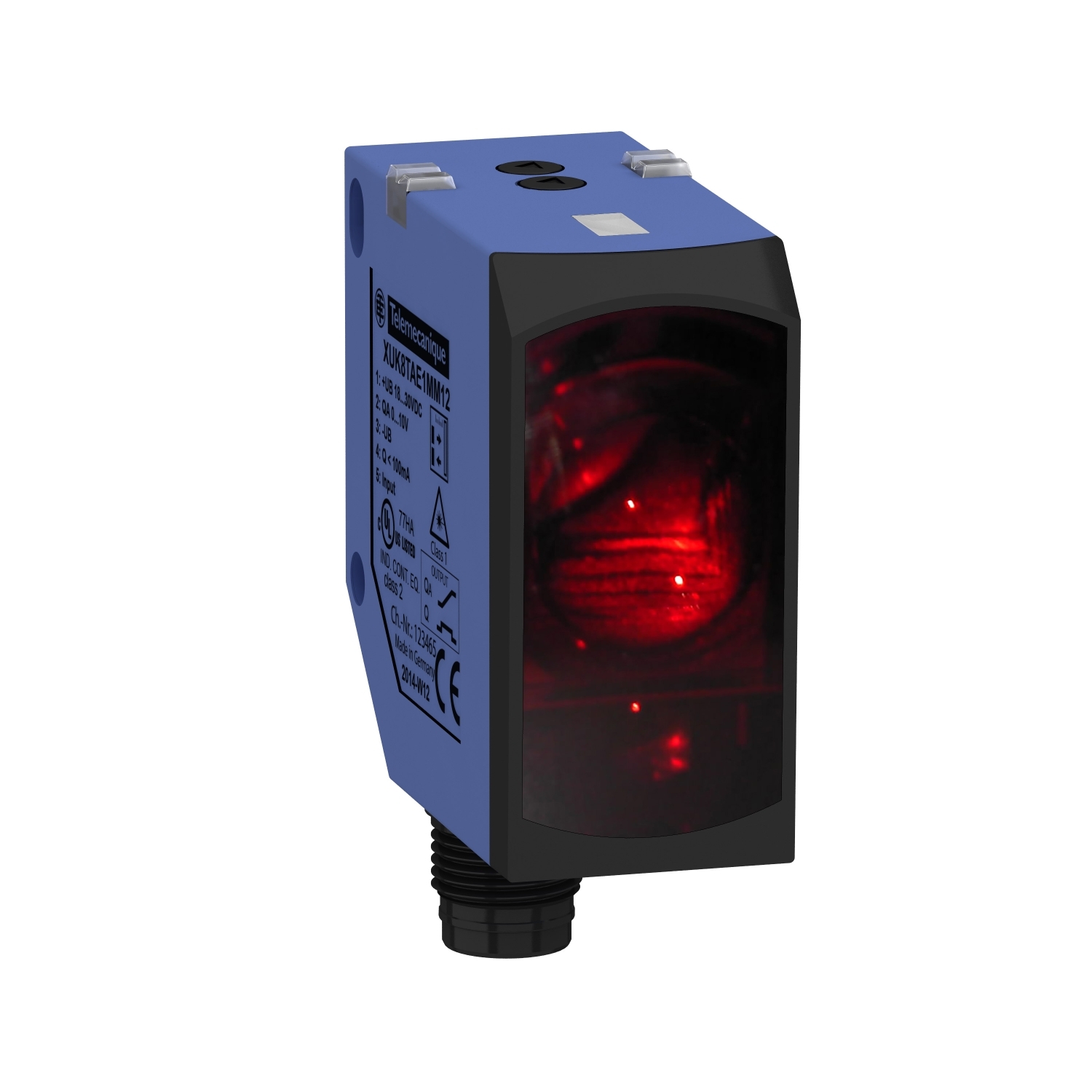

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in XUK compact 50mm x 50mm design. It has a diffuse distance sensor detection system. It supports 5m diffuse distance sensor nominal sensing distance and 1 normally opened or 1 normally closed programmable, PNP or NPN analogue + discrete type of output signal. It is furnished with 5-pin M12 male connector for electrical connection. It is an IP67 and IP69K rated product. This sensor with a rated supply voltage of 24V DC with reverse polarity protection, a no-load current consumption of ≤60mA and a switching frequency of ≤500Hz. It has red laser polarised reflex class 1 conforming to IEC 60825-1 emission. The enclosure is made of ABS/PC with PMMA lens. Its dimensions are 23mm (Width) x 50mm (Depth) x 50mm (Height) and weighs 0.035kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by Ecolab, CE and CULus.
