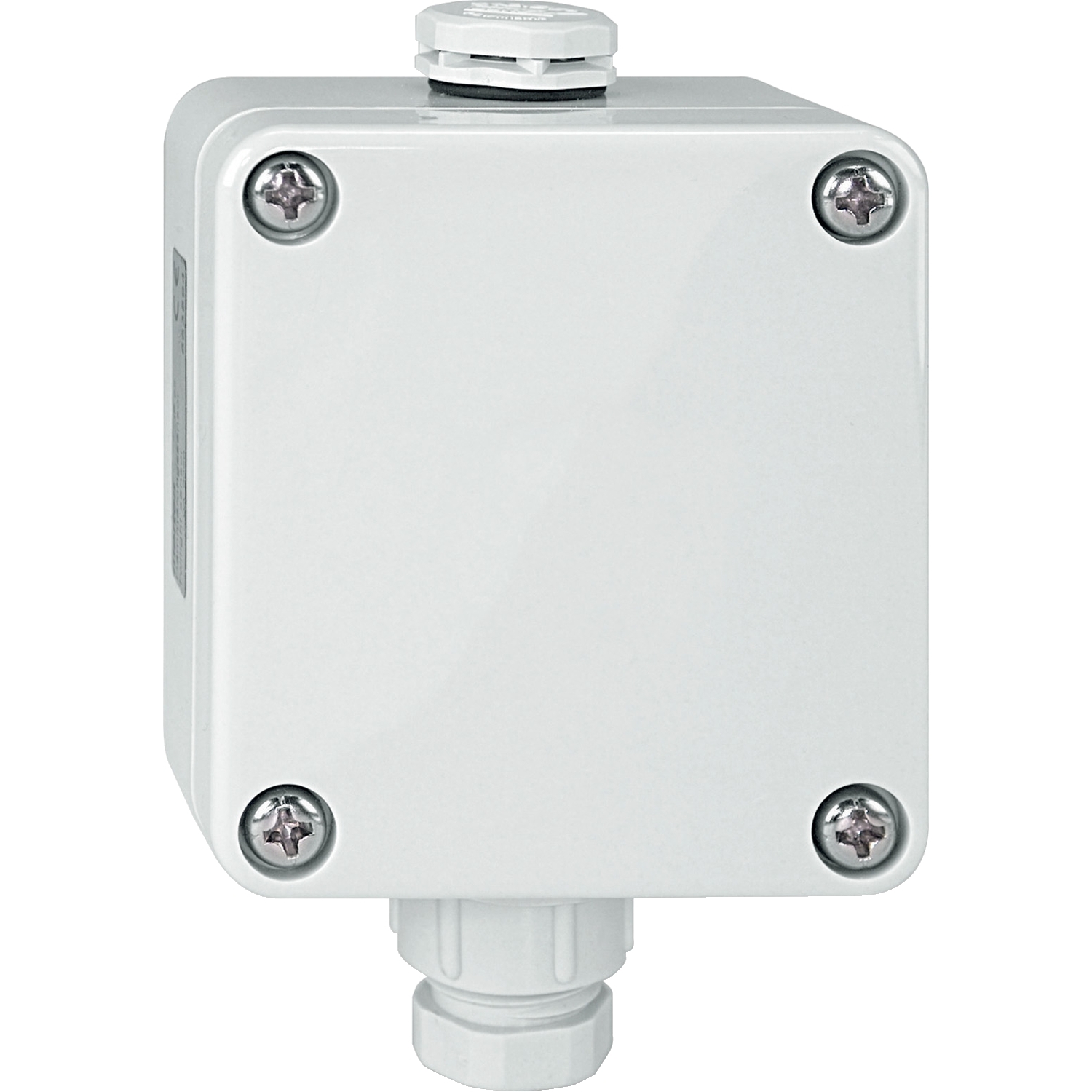

Sensor De Temperatura Externa Com Saida 0-10V MTN663596 SCHNEIDER

Código: MTN663596 Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

Temperature sensor. The temperature is measured with the temperature sensor and converted into an analogue output signal of 0-10 V. For external installation and connection to the weather station REG-K/4-gang or the analogue input REG-K/4-gang. These two devices provide the supply voltage necessary to operate the sensor. Measuring range: -30° C to +70° C linear. Output: 0-10 V short-circuit-proof. External power supply: Voltage: 24 V DC (15-30 V DC). Power consumption: approx. 3 mA. General specifications:. Incoming cable: using PG7 screw fitting. Recommended cable: 3 x 0.25 mm². Type of protection: IP 65. Dimensions: 58 x 35 x 64 (W x H x D). Colour: light grey.
