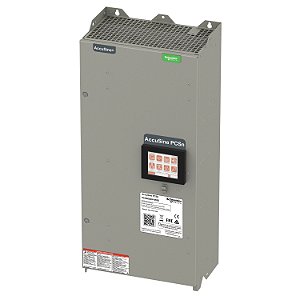

Pcsn Active Harmonic Filter 60 Amp 208-415 Vac - Wall-Mounted, Ip20 Enclosure PCSN060Y4W20E SCHNEIDER

Código: PCSN060Y4W20E Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. In addition to 3-phase mitigation, it has the ability to compensate for neutral harmonic currents. This version is ingress protection IP20, and can be connected to a main unit. It is specified for a standard Root Mean Square output current rating of 60 Amps, 180 Amps neutral. The enclosure is wall mounted, allow cable entry from bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, IBC 2015, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4 Class A, IEC 61439-1 and IEEE 519-2014. Up to 12 units in parallel per set of CT; any size unit combination possible (subject to network characteristics). Slave only. Frame exterior dimensions are 440 millimetres in width, 265 millimetres in depth, 960 millimetres in height and product weight 75 kg.
