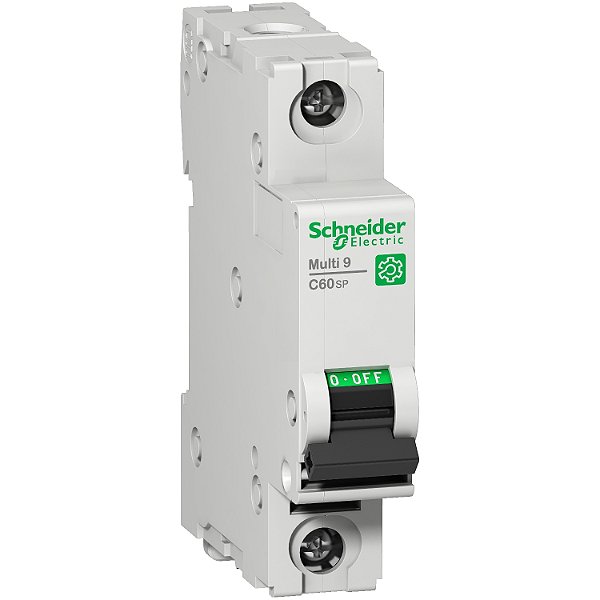

Multi 9 - C60Sp - Mcb - 1P - 32 A - C Curve - 277 V - 10 Ka - Ul 1077 M9F22132 APC

Código: M9F22132 Marca: APC

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

This Multi 9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit-breaker with 1 protected pole, 32A rated current and C tripping curve. It can be mounted on DIN rail for modular installation. As circuit-breaker, its breaking capacity, according to IEC/EN 60947-2, is 10kA at 230VAC and 3kA at 400VAC. This circuit-breaker offers a supplementary protection of circuits against short circuit and overcurrent (UL 1077). It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. It becomes IP40 once in modular enclosure. The tripping or fault indication functions are remotely provided by adding electrical auxiliaries. The green mechanical indication guarantees the physical opening of the contacts to allow downstream maintenance.
