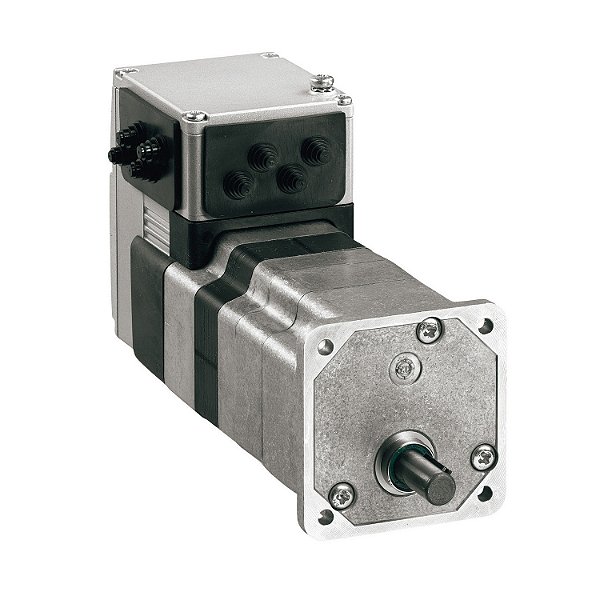

Motor Cc Brushless Com Flange De 66 Mm - 0.24 Nm/4800 Rpm - Canopen - Sem Freio - 24/36 V ILE1F661PB1A2 SCHNEIDER

Código: ILE1F661PB1A2 Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

This Lexium ILE integrated servo drive works at a rated supply voltage of 24V or 36V dc. This integrated drive range offers the motor technologie to meet the requirements for dynamic performance, flexibility or precision. It is equipped with a DC brushless motor which has a high automatic holding torque, which makes the use of an holding brake unnecessary in the majority of applications. Its high holding torque totally eliminates the need for electrical cabinets. The control electronics incorporated in the ILE1 drive provide absolute encoder functionality. It has been developed in accordance with strict international standards and recommendations for variable speed electrical power drive products. In particular IEC/EN 61800-3 (immunity to disturbance related to high frequency signals connected by cables and transmitted) and IEC/EN 50178 (vibration resistance).
