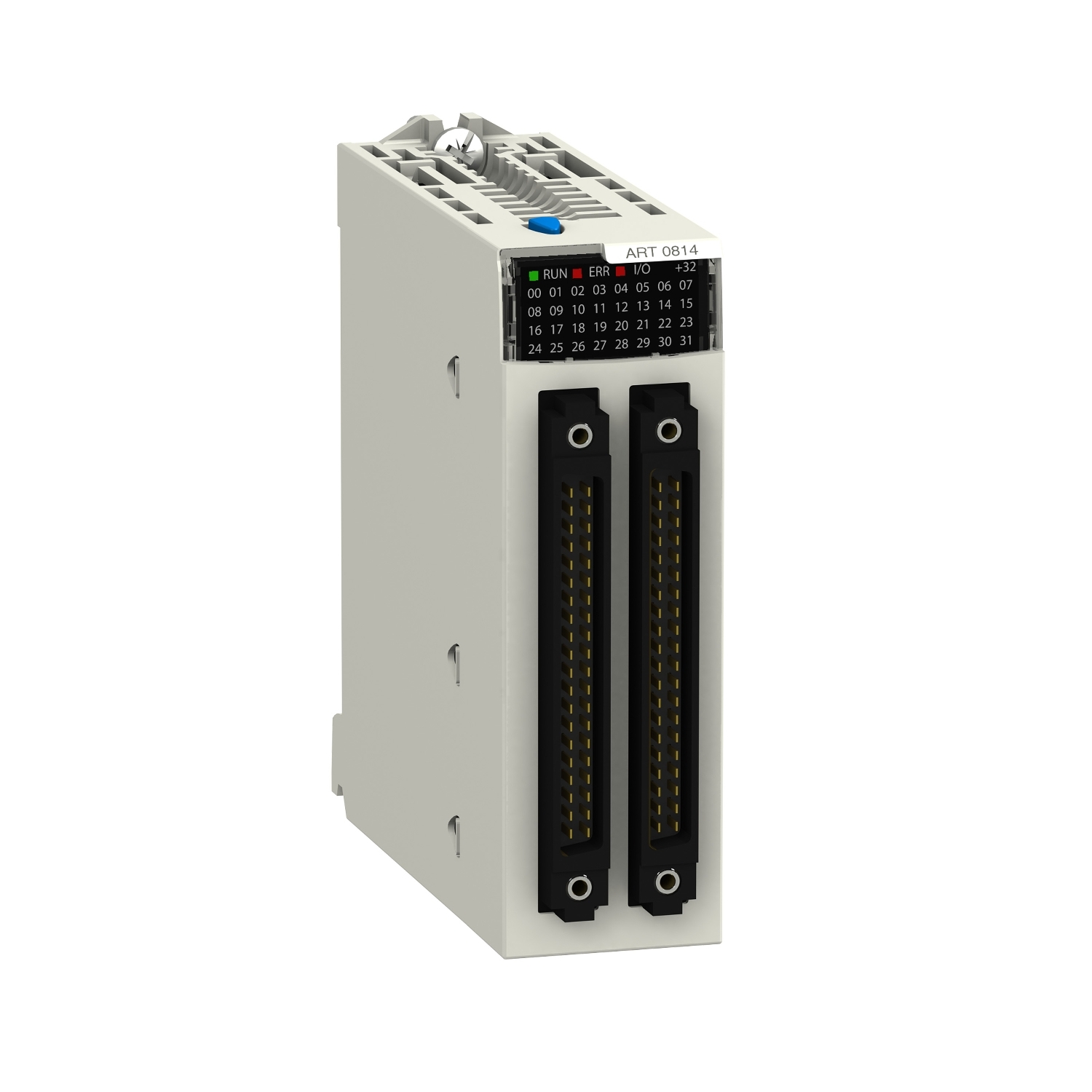

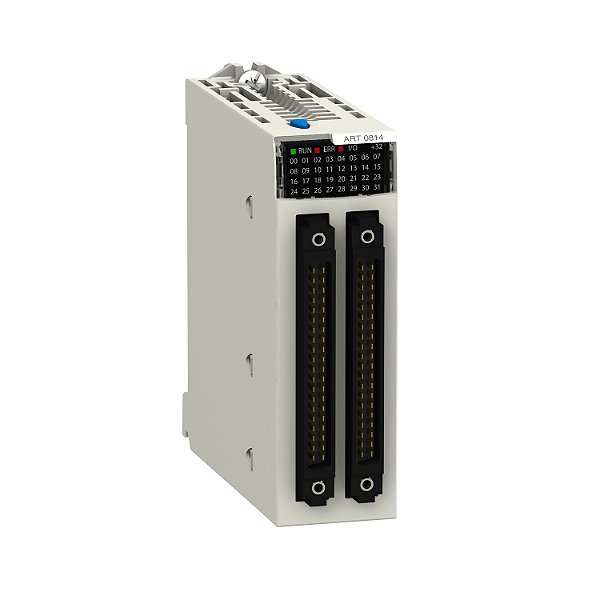

Modulo X80 - 8 Entradas Analogicas Isoladas - Tc/Rtd - Fcn- BMXART0814H SCHNEIDER

Código: BMXART0814H Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an analogue input module with a current consumption of 150mA at 3.3V DC. There is an isolation between channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 40-way connector for electrical connection. It is an IP20 rated product. It weighs 0.165kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
