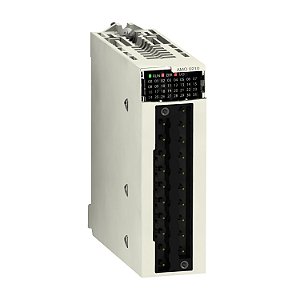

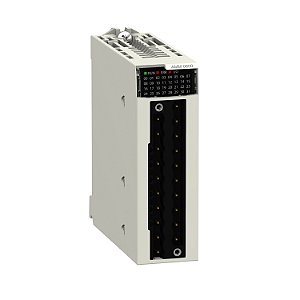

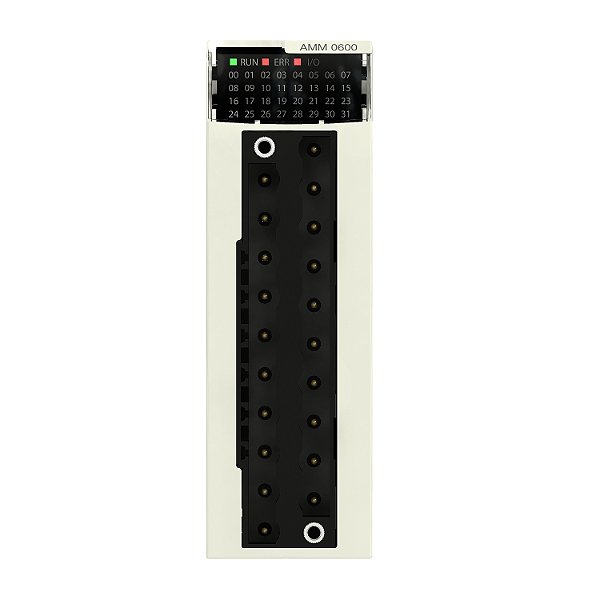

Modulo X80 - 4 Entradas E 2 Saidas Analog -Multirange-V/I - BMXAMM0600H SCHNEIDER

Código: BMXAMM0600H Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This mixed analogue I/O module has 4 input channels, 2 output channels with 12bit, 13bit, 14bit resolution. It is an analogue I/O module with a power consumption of 2.8W at 24V DC. There is no isolation channels between channels and ground at 1400V DC, channels and bus at 1400V DC and group of I/O channels at 750V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 20-way connector for electrical connection. There is no isolation channels between channels and ground at 1400V DC, channels and bus at 1400V DC and group of I/O channels at 750V DC. It is an IP20 rated product. It weighs 0.155kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
