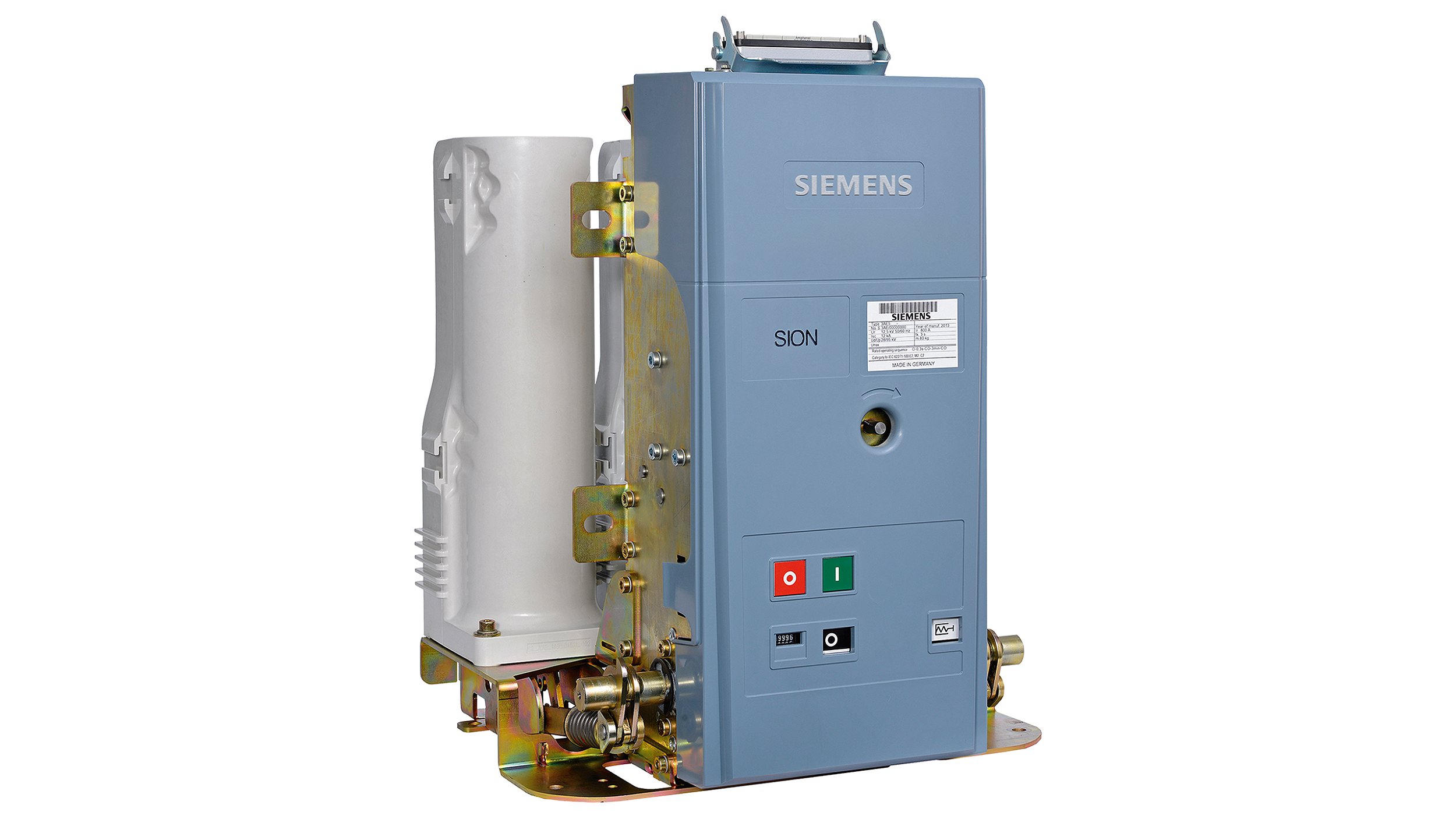

Len 3Ae52821 17,5Kv 16Ka 800A 110Vcc Ki 3AE5282-1AE40-0EA9-Z SIEMENS

Código: A7B10001387842 Marca: Siemens

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

Vacuum Circuit-Breaker, SION 3AE5, 17.5kV, 16kA, 800A, pole-center distance 210mm, Vertical Distance between Terminals 310mm, secondary equipment: operating cycle counter 2 position switches for signal closing spring charged closing solenoid 1st shunt release voltage of closing solenoid DC 110V voltage of 1st release DC 110V without 2nd release for fixed mounting voltage of drive motor DC 110V mechanical interlocking auxiliary switch 6NO+6NC breaker tripping signal secondary connection 20pole terminal strip rating plate and operating instructions in portugise system frequency 60Hz cover for Circuit-Breaker main shaft insulating shell for contact arm side, standard version routine test certificate provided hand crank for circuit-breaker key-operated interlock
