Faixa Logo Prismaset G L300 Teto Ip30 LVS08886 SCHNEIDER
Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco
Incluir no Orçamento
Estoque:
Disponível

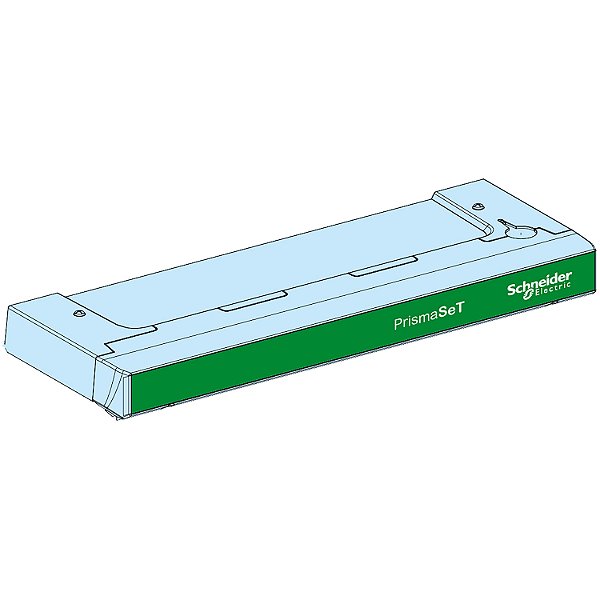

Faixa Logo Prismaset G L300 Teto Ip30 LVS08886 SCHNEIDER
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Roof plate |
| Range compatibility | PrismaSeT PrismaSeT G enclosure |
| Device application | Low voltage electrical distribution |
| Enclosure type | Metal enclosure Indoor enclosure |
| installation description | Wall-mounted duct - width 300 mm Floor-standing duct - width 300 mm |
| Standards | IEC 61439-1 for enclosure IEC 61439-2 for enclosure |
| Product certifications | ASTA |
| Material | Treated sheet steel Plastic |
|---|---|
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish | Matt Textured |
| Colour | White (RAL 9003) |
| Width | 300 mm |
| Height | 35 mm |
| Depth | 195 mm |
| Net weight | 0.52 kg |
| Quantity per set | Set of 1 |
| IP degree of protection | IP30 for enclosure |
|---|---|
| IK degree of protection | IK08 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.0 cm |
| Package 1 Width | 23.5 cm |
| Package 1 Length | 34.0 cm |
| Package 1 Weight | 1.17 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 41.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 43.0 kg |
