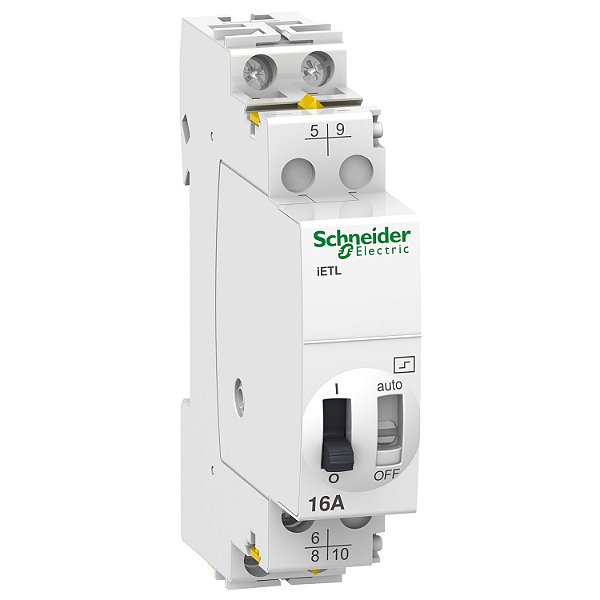

Extensao Para Rele De Impulso Acti9 Ietl16A 2Na 130Vac 50-60Hz A9C32316 SCHNEIDER

Código: A9C32316 Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

This Acti9 iETL iTL 16 is a modular extension for impulse relay. This 2P device has 1 changeover and 1 normally open contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 130VAC or 48VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be 50ms. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C . This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.
