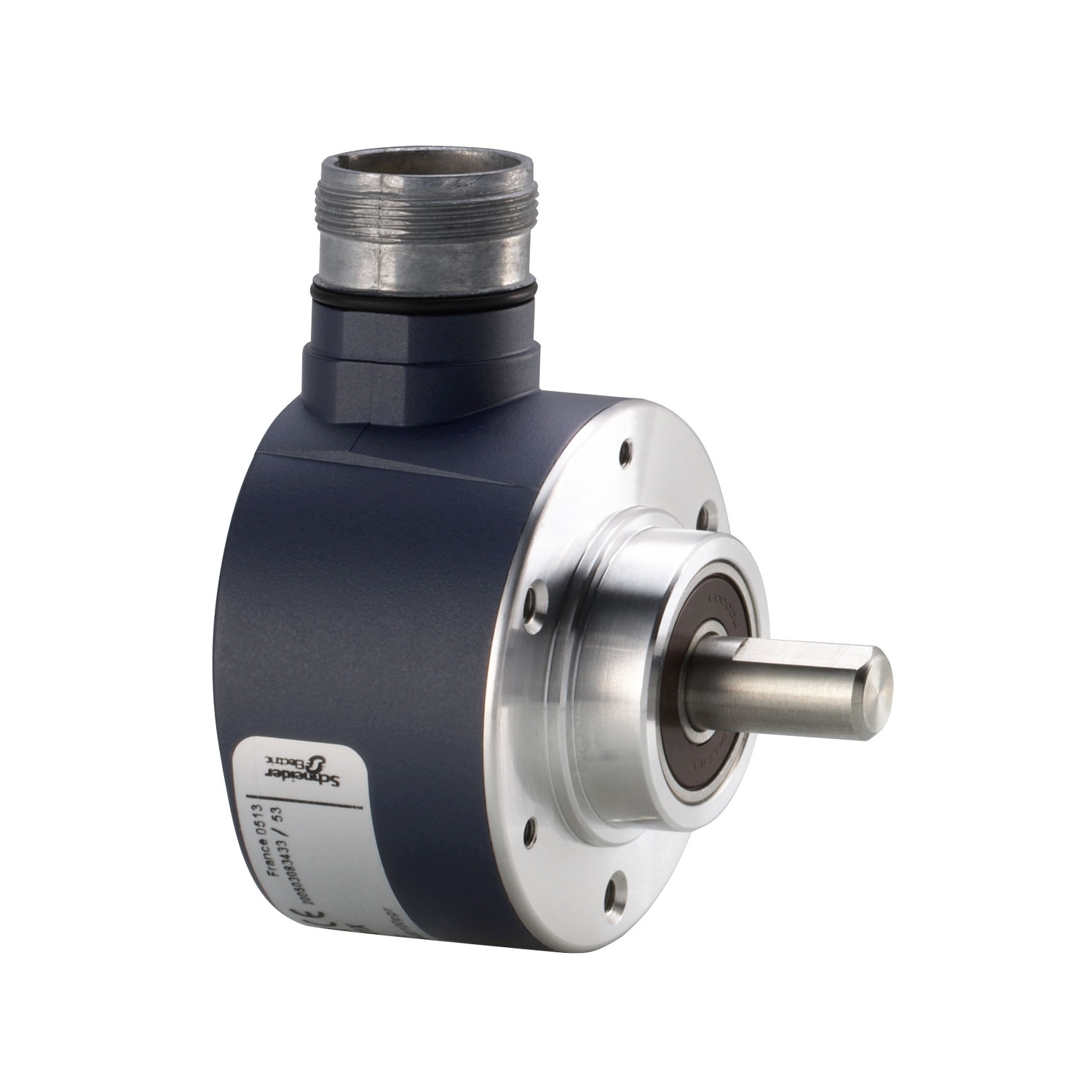

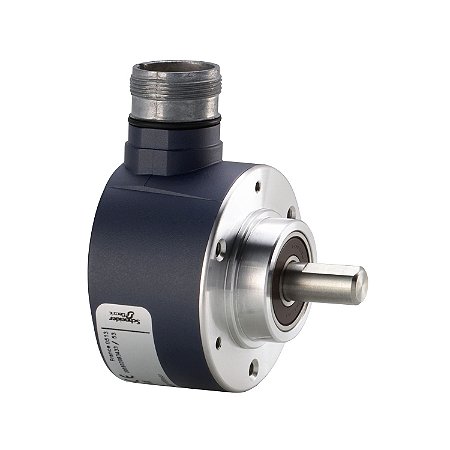

Encoder Incremental 1024 Ptos Rs422 XCC1510PS11X SCHNEIDER

Código: XCC1510PS11X Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

This product is part of the XCC range, an offer of opto-electronic rotary encoders. This incremental encoder has a diameter 10mm solid shaft and a 1024 points resolution. The maximum revolution speed is 9000RPM and the resolution is 1024 points. It is furnished with 12-pin M23 male radial connector for electrical connection and driver 5V, RS422, type X output stage. It is an incremental encoder with a rated supply voltage of 4.75V to 30V DC, a surge withstand voltage of 1kV level 2 conforming to IEC 61000-4-5 and a no-load current consumption of 0mA to 75mA. It is an IP65 rated product. The enclosure is made of Zamak, the base of aluminium and the shaft of stainless steel. Its dimension is 58mm (Diameter) and weighs 0.465kg. It is suitable for use in many industries including packaging, cutting machines, robots, cranes, materials handling, automatic dispensers, printing shops, continuous processes and conveyor systems, etc. This product is certified by CE. A range of innovative rotary encoders opened to field BUS and greatly simplify resolution parameter-setting. Ex Osicoder optical rotary encoders for all counting, position and speed information requirements.
