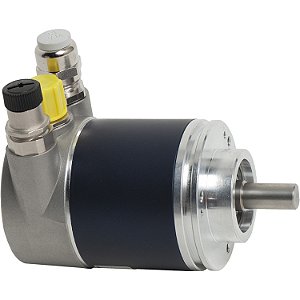

Encoder Absoluto Multivolta Can Open 25 XCC3515CS84CBN SCHNEIDER

Código: XCC3515CS84CBN Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

This product is part of the XCC range, an offer of opto-electronic rotary encoders. This multiturn absolute encoder has a diameter 15mm hollow shaft and a 25-bit binary, CANopen communication protocol output. The maximum revolution speed is 6000RPM, the resolution is 4096 turns/8192 points and shaft tolerance is F7. It is furnished with 1 male + 1 female connectors + 1 cable gland M12 radial 5-pin PG9 radial for network input/output and external supply for electrical connection. It is an IP64 rated product. It is a multiturn absolute encoder with a current consumption of 0mA to 100mA (no-load), a rated voltage of 24V DC and an output frequency of 800kHz. It has 2 LEDs to facilitate monitoring and diagnostics. The enclosure is made of aluminium, the base of aluminium and the shaft of stainless steel. Its dimension is 58mm (Diameter) and weighs 0.57kg. It is suitable for use in many industries including packaging, cutting machines, robots, cranes, materials handling, automatic dispensers, printing shops, continuous processes and conveyor systems, etc. This product is certified by CE and CiA. It meets Schneider Electric interoperability standards. A range of innovative rotary encoders opened to field BUS and greatly simplify resolution parameter-setting. The CAN-Bus interface integrated in the absolute rotary encoder supports all CANopen functions. Ex Osicoder optical rotary encoders for all counting, position and speed information requirements.
