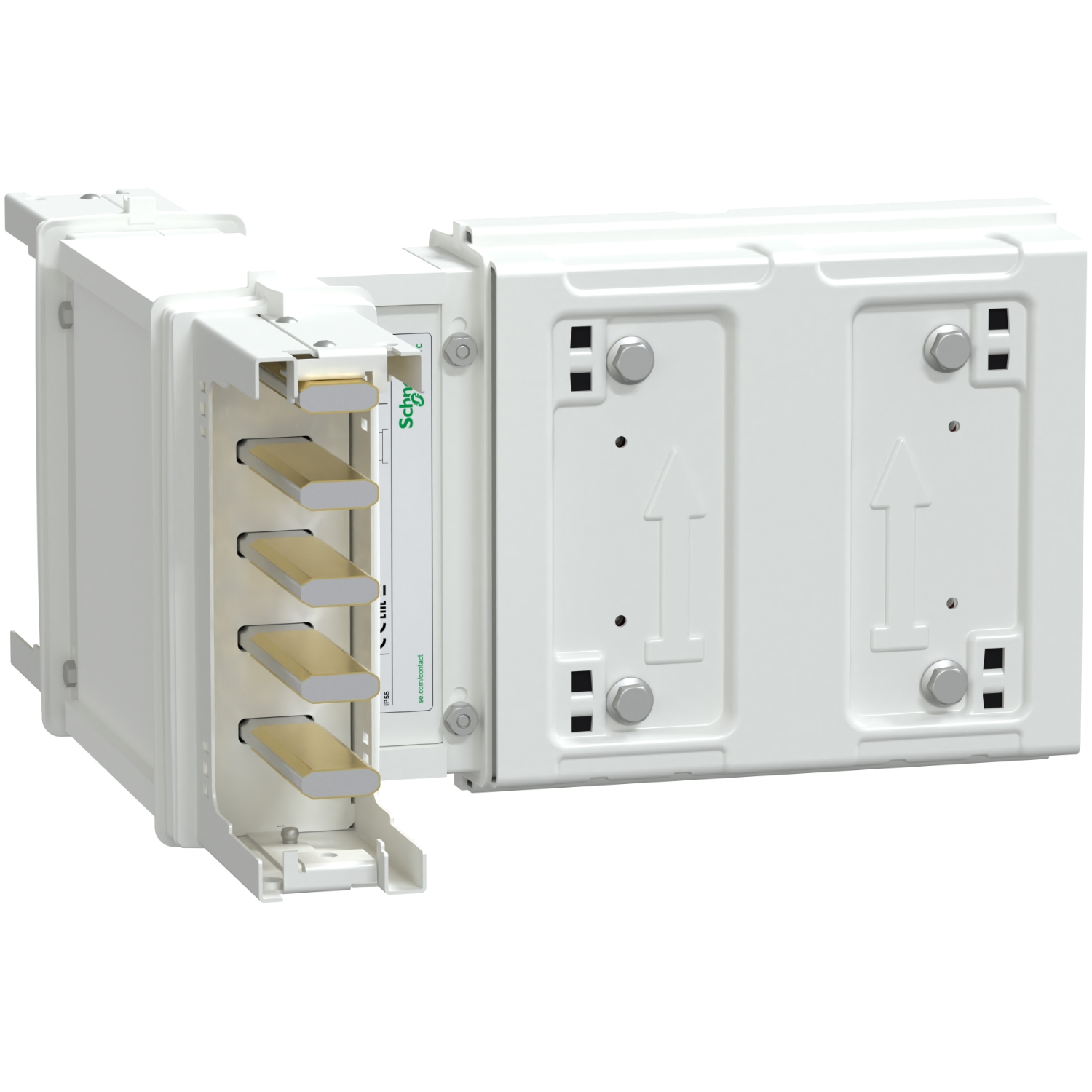

Elemento Te Ksa 250A KSA250DTC40 SCHNEIDER

Código: KSA250DTC40 Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

Canalis busway power distribution tee for KS. It's applied to change direction which could edgewise to perpendicular and neutral to up. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. Designed to mount on trunking with 90 ° operating angle and standard aluminium busbar. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Main
Range of product	Canalis
Product name	KS
Device short name	KSA
Offer type	Advanced
Product or component type	Tee
Busbar description	Standard
Product compatibility	Canalis KSA busbar trunking 100…250 A
Device application	Change direction
Conductors material	Aluminium
busbar trunking polarity	3L + N + PE
[Ie] rated operational current	250 A at 35 °C
IP degree of protection	IP55 conforming to IEC 60529
[Ue] rated operational voltage	230...690 V
Network frequency	50/60 Hz
Operating angle	90 °
Direction change type	Edgewise to perpendicular - neutral to up
Colour	White (RAL 9001)
Dimension type	Made to measure

Complementary
Length	165 mm for side A 165 mm for side B 165 mm for side C
Width	54 mm
Height	146 mm
Net weight	4.3 kg
Mounting location	On trunking
Mounting position	Any position
Electrical connection	Lubricated sliding contact
Mounting mode	By screws
Standards	IEC 61439-1 IEC 61439-6

Environment
IK degree of protection	IK08 conforming to IEC 62262

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	24.8 cm
Package 1 Width	21.6 cm
Package 1 Length	44.0 cm
Package 1 Weight	4.782 kg
Unit Type of Package 2	PAL
Number of Units in Package 2	6
Package 2 Height	40.0 cm
Package 2 Width	60.0 cm
Package 2 Length	64.0 cm
Package 2 Weight	35.089 kg

Contractual warranty
Warranty	18 months
