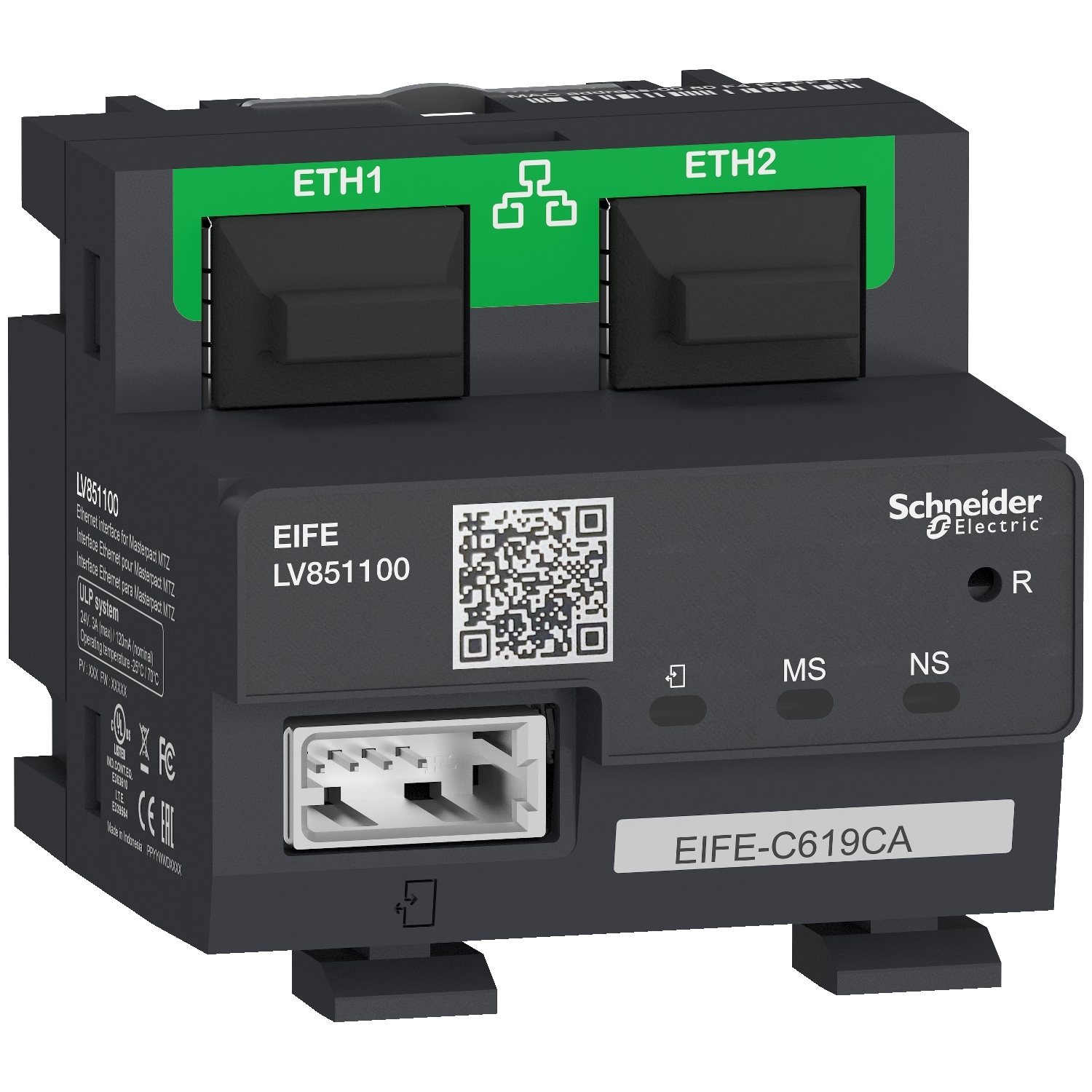

Eife Modulo Ethernet Integrado-Mtz1 Ext LV851100 SCHNEIDER

Código: LV851100 Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

This EIFE is an embedded Ethernet interface module designed for MasterPact MTZ1 drawout circuit breakers. It provides a single Ethernet access and gets all data delivered by Masterpact MTZ1 control unit. It monitors the three positions of the circuit breaker when inserted in its chassis (IN, OUT, TEST). The data flow is 10/100 Mbps for a simple daisy chain connection. The connection to EIFE interface requires a ULP communication port installed on the chassis of MasterPact MTZ1. The EIFE is mounted on MasterPact MTZ1 chassis DIN rail, and is connected to the ULP port by an ULP cable (supplied). The EIFE power supply is provided by the ULP port through the ULP cable. There are two RJ45 sockets for the connection to Ethernet network. The EIFE is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The EIFE firmware can be updated using EcoStruxure Power Commission software.
