E4.2N 3200 Ekip Hi Touch Lsig 4P Fhr 1SDA071779R1 1SDA071779R1 ABB

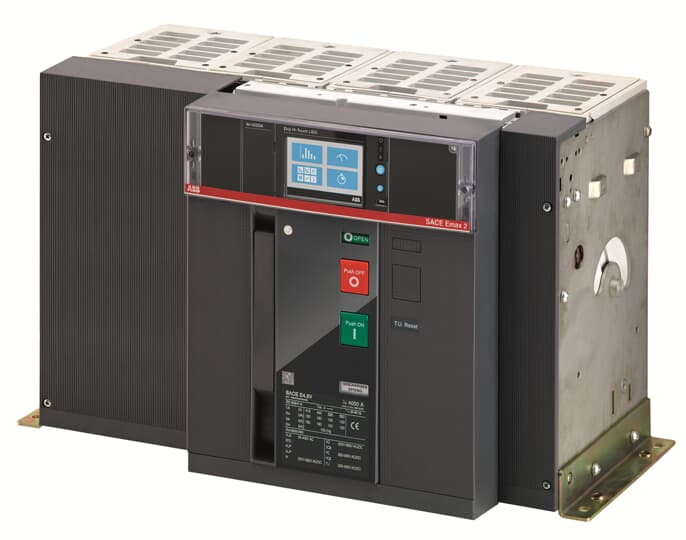

E4.2N 3200 Ekip Hi-Touch LSIG 4p F HR
General Information
-
- Extended Product Type:
- E4.2N 3200 Ekip Hi-Touch LSIG 4p F HR
-
- Product ID:
- 1SDA071779R1
-
- EAN:
- 8015644756291
-
- Catalog Description:
- E4.2N 3200 Ekip Hi-Touch LSIG 4p F HR
-
- Long Description:
- C.BREAKER SACE EMAX2 E4.2N 3200 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSIG R 3200 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Categories
- Products » Low Voltage Products and Systems » Circuit Breakers » Air Circuit Breakers » Emax 2
ABB EcoSolutions
-
- ABB EcoSolutions:
- Yes
Circular Value
-
- Circular Design Principles Recyclability Rate:
- Design for Closing Resource Loops - Standard EN45555 - 79.3 %
-
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108467A5658
-
- End of Life Instructions:
- 9AKK108468A2363
-
- Group Waste to Landfill Target:
- UL 2799 Zero Waste To Landfill Validation available
-
- Toxic Substances Control Act - TSCA:
- 9AKK108467A8326
Eco Transparency
-
- Environmental Product Declaration - EPD:
- 9AKK108468A1904
9AKK108468A1910
Environmental
-
- Environmental Information:
- 9AKK10103A1038
9AKK108467A6707
-
- REACH Declaration:
- 9AKK108466A1425
-
- RoHS Information:
- 9AKK108466A1424
-
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
-
- SCIP:
- 5db9272f-d385-4a4a-a0e6-73274e7613b2 Italy (IT)
Ordering
-
- Order Code US and Canada:
- ZCNVENBK200A000000XX
-
- EAN:
- 8015644756291
-
- Minimum Order Quantity:
- 1 piece
-
- Customs Tariff Number:
- 85362090
Dimensions
-
- Product Net Width:
- 510 mm
-
- Product Net Height:
- 371 mm
-
- Product Net Depth / Length:
- 270 mm
-
- Product Net Weight:
- 70 kg
Container Information
-
- Package Level 1 Units:
- box 1 piece
-
- Package Level 1 Width:
- 515 mm
-
- Package Level 1 Height:
- 610 mm
-
- Package Level 1 Depth / Length:
- 785 mm
-
- Package Level 1 Gross Weight:
- 77 kg
-
- Package Level 1 EAN:
- 8015644756291
Additional Information
-
- Current Type:
- AC
-
- Electrical Durability:
- Ue =< 440 V 7000 cycle
Ue = 500 ... 690 V 7000 cycle
20 cycles per hour
-
- Mechanical Durability:
- 20000 cycle
60 cycles per hour
-
- Neutral Pole Current ([%Iu]):
- 100 %
-
- Number of Poles:
- 4
-
- Power Loss:
- 425 W
-
- Product Main Type:
- SACE Emax 2
-
- Product Name:
- Air Circuit Breaker
-
- Product Type:
- Air Circuit Breaker
-
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
- 100 %
-
- Rated Current (In):
- 3200 A
-
- Rated Voltage (Ur):
- 690 V
-
- Rated Impulse Withstand Voltage (Uimp):
- acc. to IEC 60947-2 12 kV
-
- Rated Insulation Voltage (Ui):
- AC 1000 V
-
- Rated Operational Voltage:
- 690 V AC
-
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 66 kA
(660 V AC) 66 kA
(690 V AC) 66 kA
-
- Rated Short-time Withstand Current Low Voltage (Icw):
- for 1 s 66 kA
for 3 s 50 kA
-
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 66 kA
(525 V AC) 66 kA
(690 V AC) 66 kA
-
- Rated Uninterrupted Current (Iu):
- 3200 A
-
- Recommended Screw Driver:
- Main Circuit M12
-
- Release:
- Ekip Hi-Touch LSIG
-
- Release Type:
- EL
-
- Short-Circuit Performance Level:
- N
-
- Standards:
- IEC
-
- Sub-type:
- E4.2
-
- Terminal Connection Type:
- Rear flat Horizontal
-
- Terminal Type:
- Bolt
-
- Tightening Torque:
- 70 N·m
-
- Version:
- F
-
- CAD Dimensional Drawing:
- 1SDH001252R0197
Certificates and Declarations
-
- ATEX Certificate:
- No certification needed
-
- CSA Certificate:
- No certification needed
-
- CSA Certificate (Intrinsic Safe):
- No certification needed
-
- Data Sheet, Technical Information:
- 1SDC200023D0209
-
- Declaration of Conformity - CE:
- 9AKK106713A5545
-
- UL Certificate:
- No certification needed
-
- VDE Certificate:
- No certification needed
-
- Mechanical Drawings:
- 1SDH001001R0100
-
- Wiring Diagram:
- 1SDM000091R0001
-
- Instructions and Manuals:
- 1SDH001000R0002
-
- Instructions and Manuals (Part 2):
- 1SDH001316R1002
Classifications
-
- ETIM 7:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
-
- ETIM 8:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
-
- ETIM 9:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
-
- IDEA Granular Category Code (IGCC):
- 4926 >> Air circuit breakers
-
- Object Classification Code:
- Q
-
- UNSPSC:
- 39121615
-
- WEEE Category:
- 4. Large Equipment (Any External Dimension More Than 50 cm)
-
- eClass:
- V11.1 : 27370409
