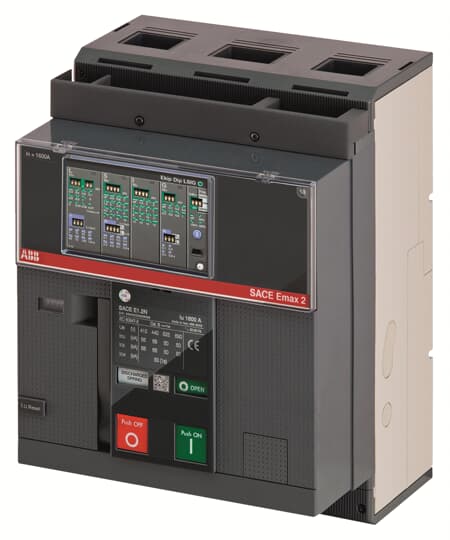

E1.2N/E9 1250 Ekip Dip Lsi 3P F F 1SDA104274R1 1SDA104274R1 ABB
General Information
-
- Extended Product Type:
- E1.2N/E9 1250 Ekip Dip LSI 3p F F
-
- Product ID:
- 1SDA104274R1
-
- EAN:
- 8015644063542
-
- Catalog Description:
- E1.2N/E9 1250 Ekip Dip LSI 3p F F
-
- Long Description:
- C.BREAKER SACE EMAX2 E1.2N 1250 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP/DIP-LSI R 1250 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED 800V
Categories
- Products » Low Voltage Products and Systems » Circuit Breakers » Air Circuit Breakers » Emax 2
Circular Value
-
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108467A5658
-
- Toxic Substances Control Act - TSCA:
- 9AKK108467A8326
Environmental
-
- Environmental Information:
- 9AKK108467A6707
-
- REACH Declaration:
- 9AKK108466A1425
-
- RoHS Information:
- 9AKK108466A1424
-
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
-
- SCIP:
- 5db9272f-d385-4a4a-a0e6-73274e7613b2 Italy (IT)
Ordering
-
- Order Code US and Canada:
- 91NREHBB000A000000XX
-
- EAN:
- 8015644063542
-
- Minimum Order Quantity:
- 1 piece
-
- Customs Tariff Number:
- 85362090
Dimensions
-
- Product Net Width:
- 210 mm
-
- Product Net Height:
- 296 mm
-
- Product Net Depth / Length:
- 183 mm
-
- Product Net Weight:
- 14 kg
Container Information
-
- Package Level 1 Units:
- box 1 piece
-
- Package Level 1 Width:
- 270 mm
-
- Package Level 1 Height:
- 350 mm
-
- Package Level 1 Depth / Length:
- 330 mm
-
- Package Level 1 Gross Weight:
- 20 kg
-
- Package Level 1 EAN:
- 8015644063542
Additional Information
-
- Current Type:
- AC
-
- Electrical Durability:
- Ue = 800 V 500 cycle
30 cycles per hour
-
- Mechanical Durability:
- 20000 cycle
60 cycles per hour
-
- Number of Poles:
- 3
-
- Power Loss:
- 400 W
-
- Product Main Type:
- SACE Emax 2
-
- Product Name:
- Air Circuit Breaker
-
- Product Type:
- Air Circuit Breaker
-
- Rated Current (In):
- 1250 A
-
- Rated Voltage (Ur):
- 800 V
-
- Rated Impulse Withstand Voltage (Uimp):
- acc. to IEC 60947-2 12 kV
-
- Rated Insulation Voltage (Ui):
- AC 1000 V
-
- Rated Operational Voltage:
- 800 V AC
-
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (800 V AC) 35 kA
-
- Rated Short-time Withstand Current Low Voltage (Icw):
- for 1 s 35 kA
for 3 s 30 kA
-
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (800 V AC) 35 kA
-
- Rated Uninterrupted Current (Iu):
- 1250 A
-
- Release:
- Ekip Dip LSI
-
- Release Type:
- EL
-
- Remarks:
- E9
-
- Short-Circuit Performance Level:
- N
-
- Standards:
- IEC
-
- Sub-type:
- E1.2
-
- Terminal Connection Type:
- Rear flat Horizontal
-
- Version:
- F
Certificates and Declarations
-
- Data Sheet, Technical Information:
- 1SDC200023D0209
-
- Instructions and Manuals:
- 1SDH000999R0002
Classifications
-
- ETIM 7:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
-
- ETIM 8:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
-
- ETIM 9:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
-
- Object Classification Code:
- Q
-
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
-
- eClass:
- V11.1 : 27370409
