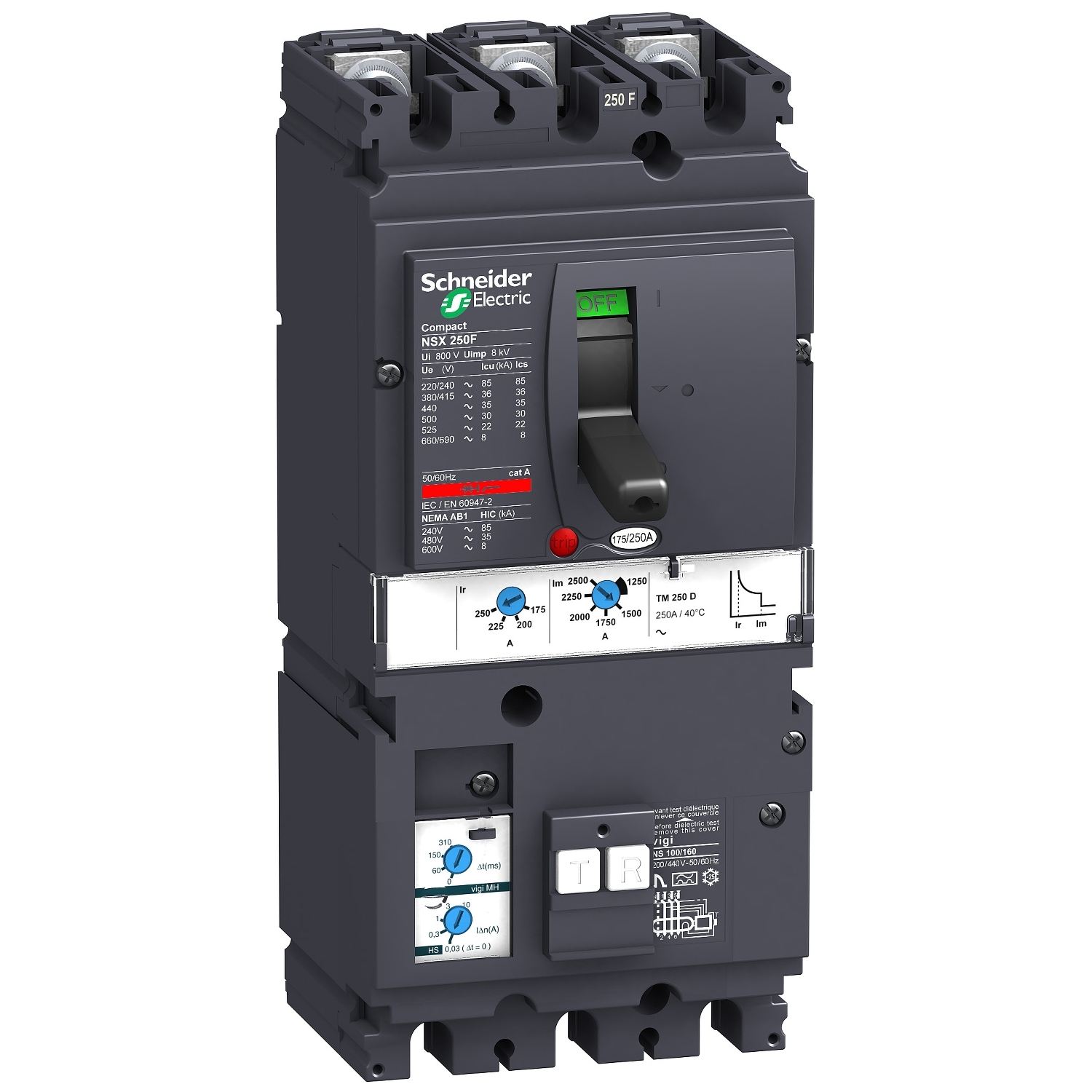

Disjuntor Nsx250B Tm250D + Vigi Mh 3P LV431900 SCHNEIDER

Código: LV431900 Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: 90 dias úteis

This Vigicompact NSX250B is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 250A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. The earth-leakage protection is achieved by installing an add-on Vigi MH module directly on the circuit breaker power terminals. The earth-leakage protection sensitivity is adjustable directly on the add-on Vigi MH module from 30mA to 10A. The earth-leakage protection time delay is adjustable directly on the add-on Vigi module. This 3 poles version (105mm x 236mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Vigicompact NSX250B is part of Schneider Electric EcoStruxure Power architecture.
