Disjuntor Motor Tripolar Classe 10 Para 50 Ka Em 380 V Com Ajuste Térmico De 0 4 À 0 63 A MS116-0,63 1SAM250000R1004 ABB

Código: 1SAM250000R1004 Marca: ABB

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

Extended Product Type:

MS116-0.63
Product ID:

1SAM250000R1004
EAN:

4013614320279
Catalog Description:

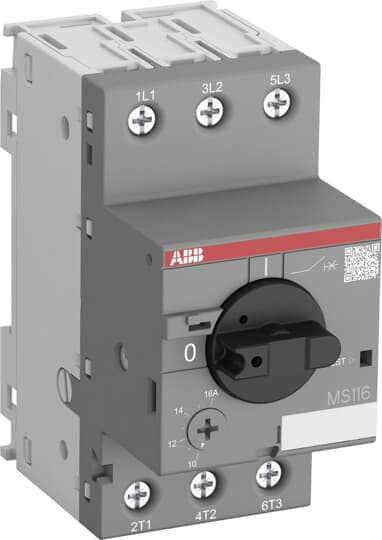

MS116-0.63 Manual Motor Starter 0.40 ... 0.63 A
Long Description:

The MS116-0.63 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 0.63 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.
