Disjuntor Motor Tripolar 690V In=16 20A Fixo Ics=25Ka (230Vca) Ics=3Ka (440Vca) Modelo Somente Proteção Magnética MO132-32 1SAM360000R1015 ABB

Código: 1SAM360000R1015 Marca: ABB

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

Extended Product Type:

MO132-32
Product ID:

1SAM360000R1015
EAN:

4013614400308
Catalog Description:

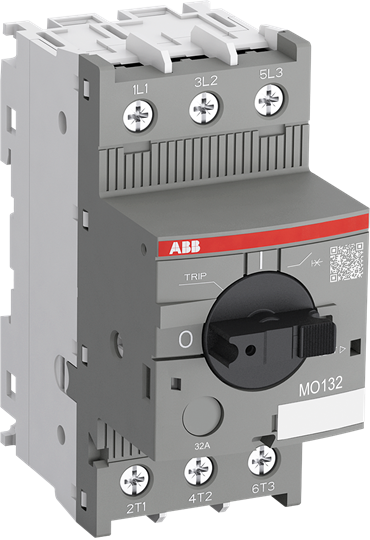

MO132-32 Manual Motor Starter Magnetic Only 32 A
Long Description:

The MO132-32 manual motor starter magnetic only is a compact 45 mm width device with a rated operational current of Ie = 32.0 A. This device is used to manually switch on and off loads/motors and to protect them reliably and without the need for a fuse from short-circuits. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 30 kA at 400 V AC. A combination together with overload relays or motor controllers allows the protection of motors. Further features are the built-in disconnect function, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter magnetic only is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks are available as accessory.
