Disj 3P 4000A 100Ka 3WL1340-4CB62-4GN2-Z SIEMENS

Clique no botão ao lado para assistir ao vídeo relacionado ao produto.

Assistir Vídeo

Disj 3P 4000A 100Ka 3WL1340-4CB62-4GN2-Z SIEMENS

Código: A7B10001395052 Marca: Siemens

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

Product

Article Number (Market Facing Number)

3WL1340-4CB36-4AN2-Z A05

Product Description

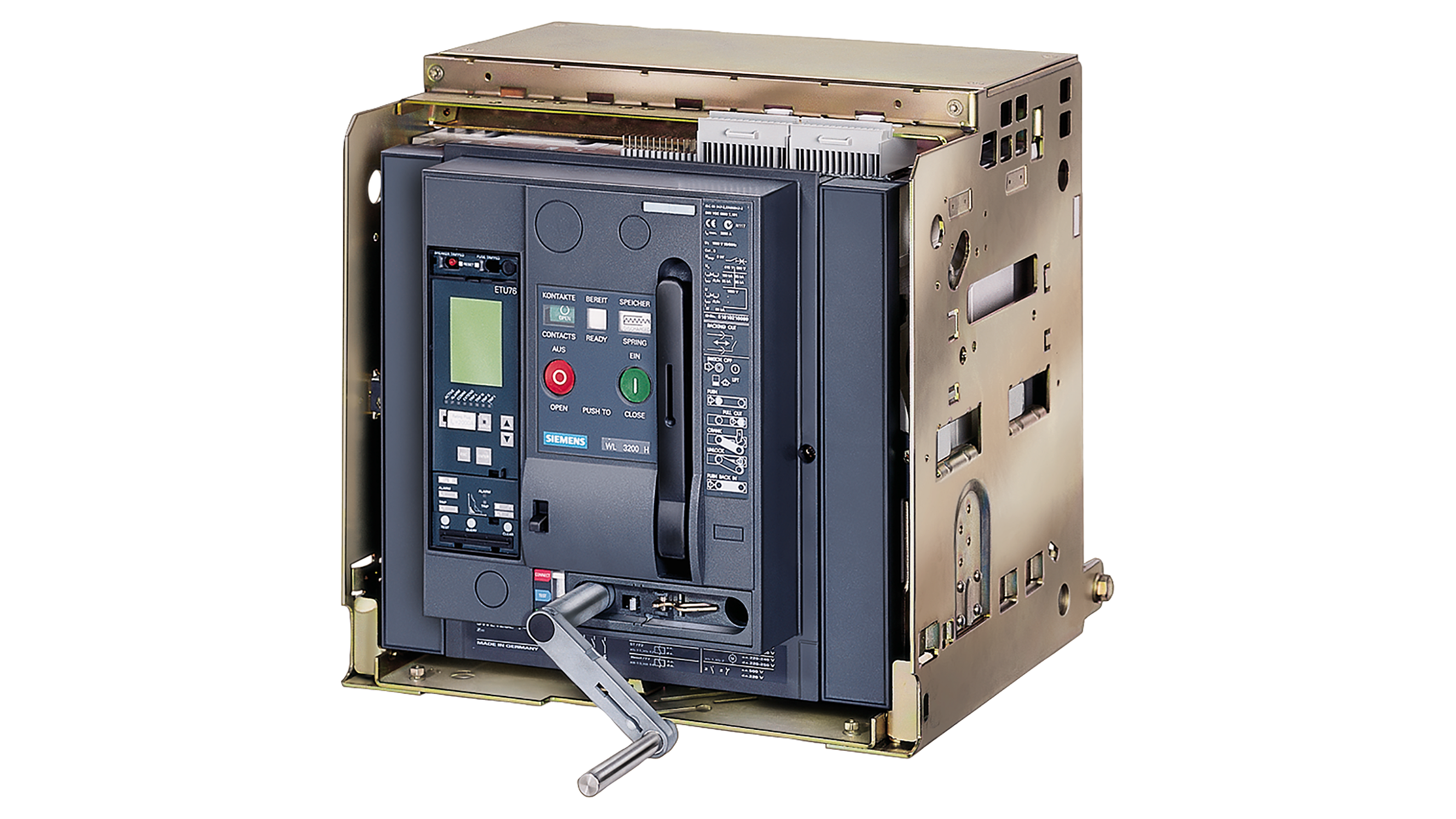

withdrawable circuit breaker with guide frame 3-pole, size III, IEC In=4000A to 690V, AC50/60Hz Icu=100kA at 500V rear connection horizontal Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in Motorized/manual operating mechanism with spring charging motor AC 50/60 Hz 208-240 V or 220-250 V DC Activation AC 50/60 Hz 230 V, 220 V DC without 1st auxiliary release With 2nd auxiliary release "R", F3 Undervoltage, instant. 208-240 V AC, 220-250 V DC 2NO+2NC A05= Version for 1000 V

Product family

3-pole

Product Lifecycle (PLM)

PM300:Active Product

PLM Effective Date

Product phase-out since: 01.10.2023

Notes

This product cannot be ordered currently. If you need support please contact your Siemens partner

Price data

Region Specific PriceGroup

1CA

List Price

Price On Request

Customer Price

Price On Request

Metal Factor

LAO-----

Delivery information

Export Control Regulations

ECCN : EAR99 / AL : N

Standard lead time ex-works

30 Day/Days

Net Weight (kg)

148,000 Kg

Package size unit of measure

Not available

Quantity Unit

1 Piece

Packaging Quantity

Additional Product Information

EAN

Not available

UPC

Not available

Commodity Code

85362090

LKZ_FDB/ CatalogID

LV10.1

Product Group

3745

Group Code

P360

Country of origin

Czech Republic

Compliance with the substance restrictions according to RoHS directive

Given

Product class

C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.

WEEE (2012/19/EU) Take-Back Obligation

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Classifications

	Version	Classification
eClass	12	27-37-04-09
eClass	6	27-37-04-09
eClass	7.1	27-37-04-09
eClass	8	27-37-04-09
eClass	9	27-37-04-09
eClass	9.1	27-37-04-09
ETIM	7	EC000228
ETIM	8	EC000228
IDEA	4	4850
UNSPSC	15	39-12-16-01
