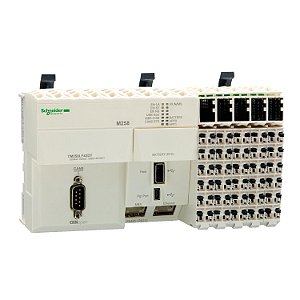

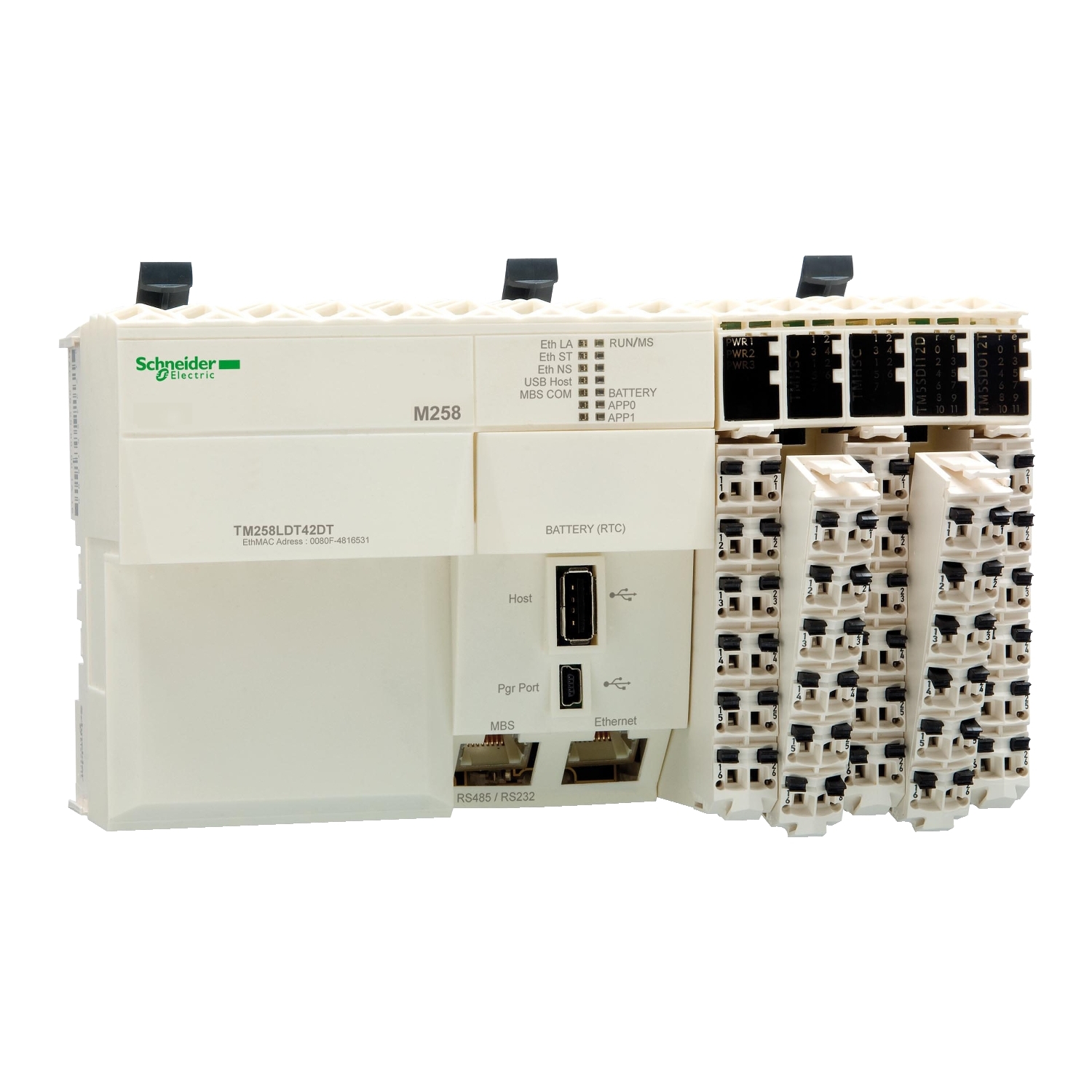

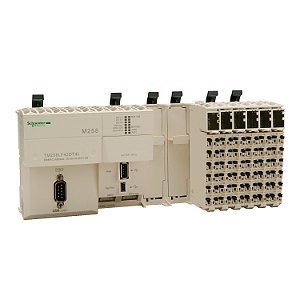

Controlador Lógico Programável - 26 Entradas / 16 Saídas Digitais - Saídas Source (Pnp) - Modbus Tcp/Ethernet Ip - 24 Vdc TM258LD42DT APC

Código: TM258LD42DT Marca: APC

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

This product is part of the Modicon M258 range, an offer of logic controllers for high performance machine builders. This compact base is for logic controller. It provides 10 for fast, 4 for regular, 12 for discrete inputs and 4 fast, 12 discrete outputs. The compact base has sink for fast and regular, source for input logic and source output logic. There is an isolation between channels 500Vrms and internal logic and no isolation between channels. It supports 128MB flash and 64MB internal RAM memory. It is an IP20 rated product. Its dimensions are 175mm (Width) x 85mm (Depth) x 99mm (Height). It weighs 0.5kg. It is suitable for used in general machine control, conveying and packaging applications. This product is certified by CE, GOST-R CSA, C-Tick and CULus. It meets IEC 61131-2, CSA C22.2 No 213, CSA C22.2 No 142 and UL 508 standards. Compact and totally expandable, the Modicon M258 Logic Controllers are designated to the machine builders (OEMs) by offering performant solutions in terms of speed control, high speed counting, motion and communication networks. 30% saving time in assembly, wiring and commissioning.
