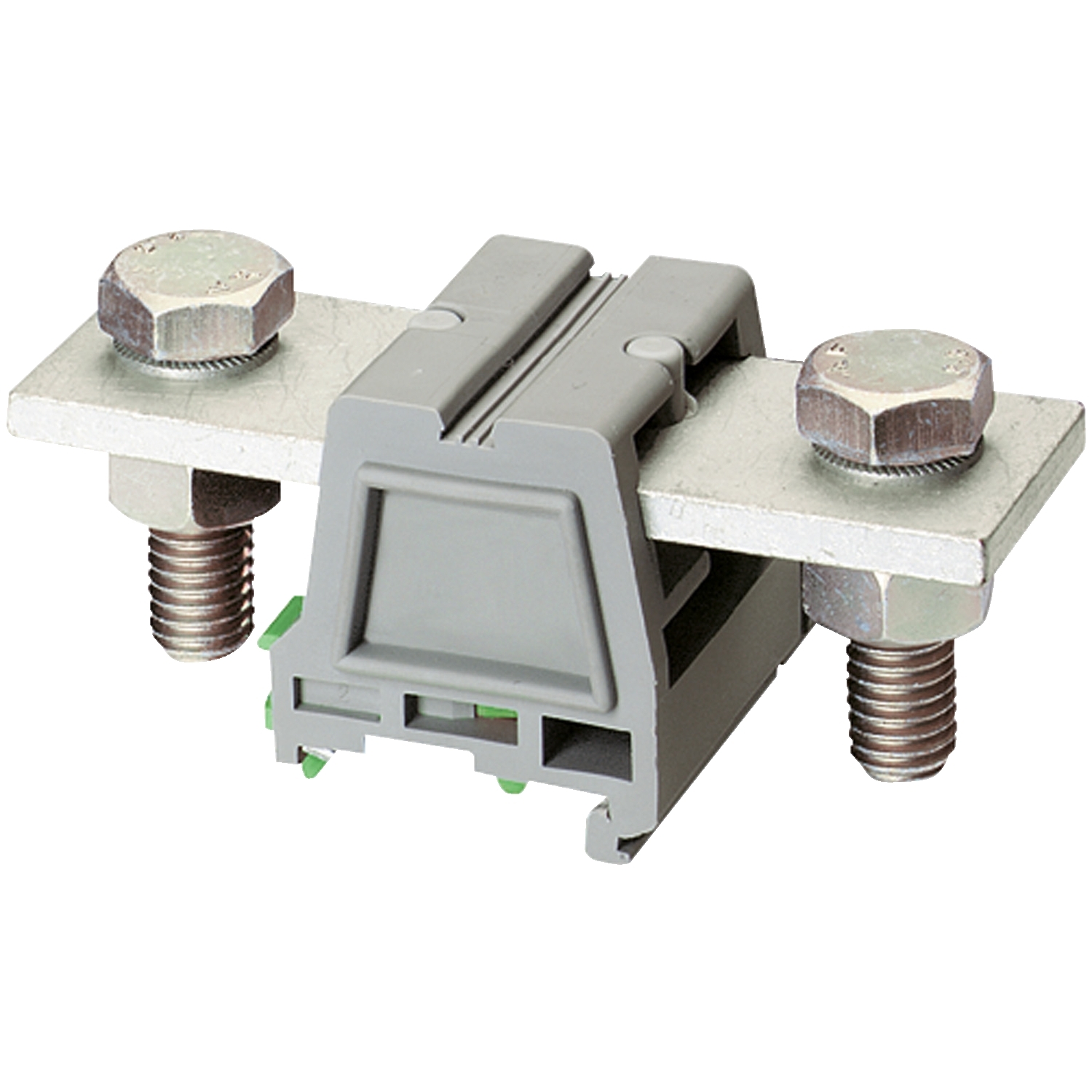

Conector Parafuso 150Mm2 2 Pontos Cinza NSYTRV1502BB SCHNEIDER

Código: NSYTRV1502BB Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 150 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 1000V conforming to EN/IEC 60947-7-1. The rated current is 309A conforming to EN/IEC 60947-7-1, 275A conforming to CSA and 285A conforming to cURus. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 lug to lug terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Prisma PH and Spacial. Sold in lots of 10 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (cURus, GL, CSA, EAC). It is compliant with Green Premium (RoHS/REACH).
