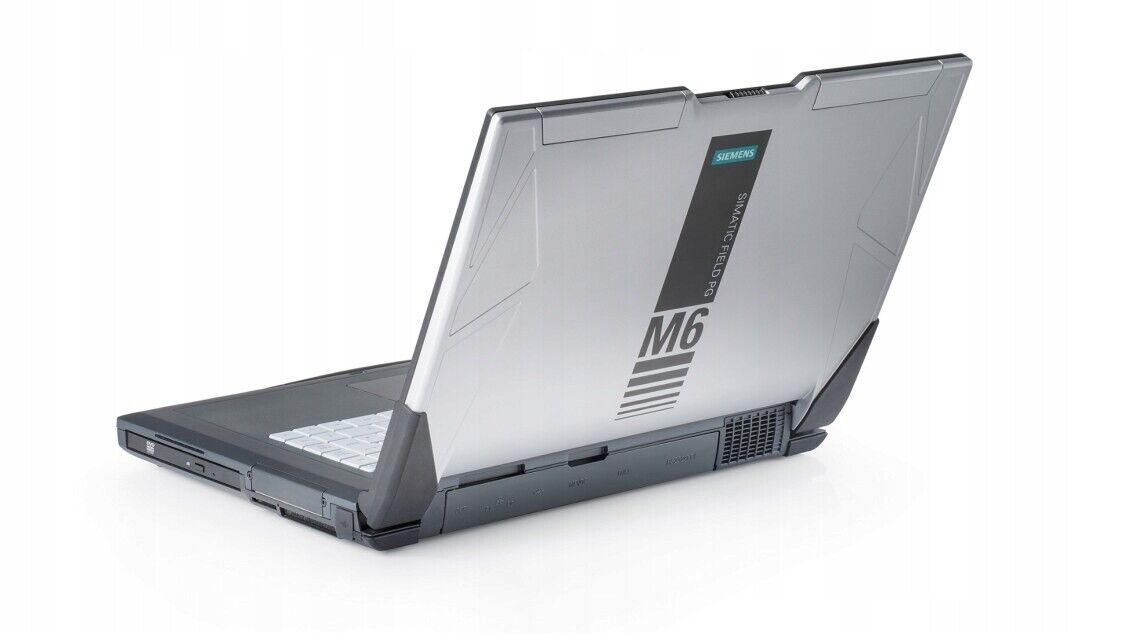

Computador SIMATIC FIELD PG M6 ADVANCED 6ES7718-1CC00-0CA3 Siemens

General information

Design of the programming device

Notebook

Display

Design of display

15.6" full HD display in 16:9 format

Resolution (pixels)

• Horizontal image resolution
• Vertical image resolution

1 920 pixel

1 080 pixel

General features

• Non-reflecting
• Luminance

Yes

300 cd/m²

Backlighting

• Type of backlighting

LED

Control elements

Keyboard fonts

• Design

QWERTZ/QWERTY or AZERTY (French); 87 keys

Touch operation

• Integrated touch pad

Yes; Clickpad

Supply voltage

Design of the power supply

External wide-range power supply; 3-pole 100 V; ±10 %, sinusoidal

240 V; ±10 %, sinusoidal

permissible range, lower limit (AC)

permissible range, upper limit (AC)

Line frequency

• permissible range, lower limit
• permissible range, upper limit

47 Hz

63 Hz

Processor

Processor type

Intel Core i5-8400H (2.5 to 4.2 GHz, 4 cores and hyper-threading, 8 MB Smart Cache) or i7-8850H (2.6 to 4.3 GHz 6 cores and hyper-threading, 9 MB Smart Cache)

Intel CM246 Yes

Yes

Chipset

Hyper-threading

Turbo Boost Technology 2.0

Graphic

Graphics controller

Intel® UHD Graphics 630

Drives

SSD

• Memory capacity

Yes; Easy to replace

256 Gbyte; Up to 2 TB SSD

Yes; 2.0 (version for China without TPM)

TPM Security Chip

Memory

Type of memory

DDR4 SO-DIMM

Work memory

• Number of slots

2; can be equipped with 1x 8 GB, 1x 16 GB, 1x 32 GB or 2x32 GB

Accumulator

Replaceable

Yes; Lithium-ion battery

8.25 A·h

Capacity

Interfaces

Number of interfaces PROFIBUS DP

1; 1x PROFIBUS DP / MPI; 9-pin Sub-D socket; 9.6 kBaud to 12 MBaud 1; 25-pin socket

4

3; 1x USB port incl. integrated charging function for USB devices (e.g. smartphone) - also with device switched off

1; USB 3.1 Gen. 2

1; Smart Card Reader (ISO/IEC 7816) Yes; V5.0

2 in 1 (SDHC UHS-II, MMC)

SIMATIC memory cards (for S7-300/400), SMC (for S7-1x00), SIMATIC micro memory card (for S7-300/C7/ET 200) - including programming interfaces

Yes; Audio socket for 3.5 mm jack

Number of RS 232 interfaces

Number of USB interfaces

• Type A

• Type C

Number of chip-card readers

Bluetooth radio standard

Multimedia card/SD card slot

Card reader for SIMATIC memory cards

Universal Audio Jack

Video interfaces

• analog video signal (VGA)
• DVI-I
• DisplayPort

Yes; via adapter from DVI to VGA Yes; 1x

Yes; 1x

Industrial Ethernet

• Industrial Ethernet interface
  • 100 Mbps
  • 1000 Mbps
• Wake on LAN
• IAMT (Intel Active Management Technology)

2x Ethernet (RJ45) Yes

Yes Yes

Yes

WLAN

• Type

802.11ac

Interrupts/diagnostics/status information

LED status display

Battery status, device status, access to HDD/DVD, access to SD/MMC, MPI/DP, S5 and S7 modules / Card Reader (except Smart Card Reader), Num Lock, Caps Lock, WLAN active

EMC

Interference immunity against discharge of static electricity

• Interference immunity against discharge of static electricity acc. to IEC 61000-4-2

Yes; ±4 kV contact discharge acc. to IEC 61000-4-2, ESD; ±8 kV air discharge acc. to IEC 61000-4-2, ESD

Interference immunity to cable-borne interference

• Interference immunity on supply cables

• Interference immunity on signal cables

±2 kV (according to IEC 61000-4-4, burst); ±1 kV (according to IEC 61000-4-5, surge pulse/line to line); ±2 kV (according to IEC 61000-4-5, surge pulse/line to ground)

±1 kV (according to IEC 61000-4-4, burst, length < 30 m); ±2 kV (according to IEC 61000-4-4, burst, length > 30 m); ±2 kV (according to IEC 61000-4-5, surge sym./line to ground, length > 30 m)

Standards, approvals, certificates

CE mark

Yes Yes Yes

Yes

CSA approval

UL approval

DIN/ISO 9001

Ambient conditions

Ambient temperature during operation

• min.
• max.

5 °C; Max. 10 °C/h (no condensation) 40 °C; Max. 10 °C/h (no condensation)

Ambient temperature during storage/transportation

• min.
• max.

-20 °C; Max. 20 °C/h (no condensation) 60 °C; Max. 20 °C/h (no condensation)

Relative humidity

• Operation, min.

• Operation, max.

5 %; At 30 °C/h (no condensation); Tested according to IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-14

85 %; At 30 °C/h (no condensation); Tested according to IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-14

Vibrations

• Operation, tested according to IEC 60068-2-6

Yes

Shock testing

• tested according to IEC 60068-2-27

Yes

Operating systems

Local language of operating system

Multi-Language User Interface (MUI): 6 languages (English, German, French, Spanish, Italian, Chinese)

pre-installed operating system
