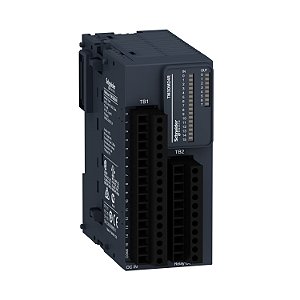

Bloco De Entradas E Saídas Digitais - 24 Entradas/18 Saídas - Entradas Sink - Saídas Source - 24 Vdc - Terminal Mola TM5C24D18T SCHNEIDER

Código: TM5C24D18T Marca: Schneider

Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco

Qtde: Incluir no Orçamento Estoque: Disponível

This product is part of the Modicon TM5 range, an offer of modules for IP20 modular I/O system. This compact I/O expansion block provides 42 input/outputs with sink discrete input logic and source discrete output logic. It is furnished with removable spring terminal block for electrical connection. It is an expansion block with a current consumption of 70mA at 5V DC and 140mA at 24V DC I/O, a maximum power dissipation of 3.71W and a rated I/O voltage of 24V DC. It is an IP20 rated product. The enclosure is made of white plastic. It weighs 0.24kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by CE, C-Tick, CSA, GOST-R and CULus. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It supports DIN rail mount. This IP20 modular IO system provides a flexible and scalable configuration of expansions/distributed I/O islands by connection with Modicon controllers (TM5 bus) or via CANopen bus/Sercos bus for Modicon and PacDrive 3 controllers as well. Flexible and scalable, designed for complex machines.
