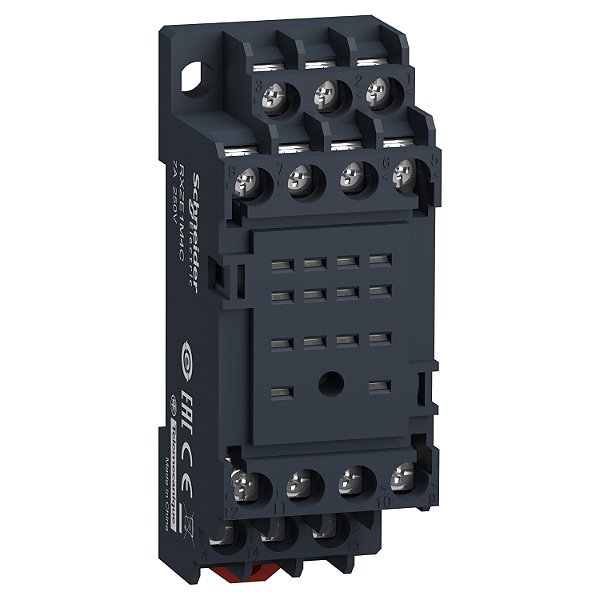

Base Para Rele De Interface Rmx4Lb RXZE1M4C SCHNEIDER
Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco
Incluir no Orçamento
Estoque:
Disponível
Base Para Rele De Interface Rmx4Lb RXZE1M4C SCHNEIDER
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Product or component type | Socket |
| contact terminal arrangement | Mixed |
| Product compatibility | Plug-in relay RXM with 2 C/O contact Plug-in relay RXM with 4 C/O contact |
| device short name | RXZ |
| Sale per indivisible quantity | 10 |
| [Ith] conventional free air thermal current | 7 A |
|---|---|
| [Ue] rated operational voltage | 250 V AC conforming to IEC |
| Connections - terminals | Screw clamp terminals, 1 x 0.2...1 x 1.0 mm² (AWG 24...AWG 17) flexible with cable end Screw clamp terminals, 2 x 0.2...2 x 1.0 mm² (AWG 24...AWG 17) flexible with cable end Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Tightening torque | < 0.8 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| Marking | CE |
| Width | 29 mm |
| Net weight | 0.053 kg |
| [Uimp] rated impulse withstand voltage | 4 kV |
|---|---|
| Overvoltage category | III |
| Pollution degree | 3 |
| Standards | IEC 61984 |
| Ambient air temperature for storage | -55…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Dielectric strength | 2500 V |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.9 cm |
| Package 1 Width | 3.1 cm |
| Package 1 Length | 7.5 cm |
| Package 1 Weight | 0.052 kg |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 6.8 cm |
| Package 2 Width | 8.0 cm |
| Package 2 Length | 14.9 cm |
| Package 2 Weight | 0.541 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 270 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 14.9 kg |
| Warranty | 18 months |
|---|
