Base Fusível Bipolar Para Fusível Gpv Até 32A 1000Vcc E92/32PV 2CSM204703R1801 ABB
Para mais informações entre em contato conosco através do telefone (11) 5091-2400 ou através do Fale Conosco
Incluir no Orçamento
Estoque:
Disponível

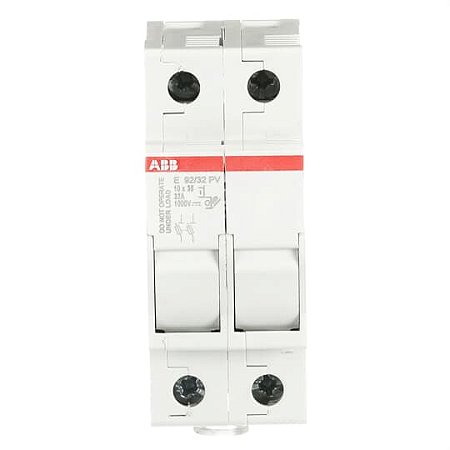

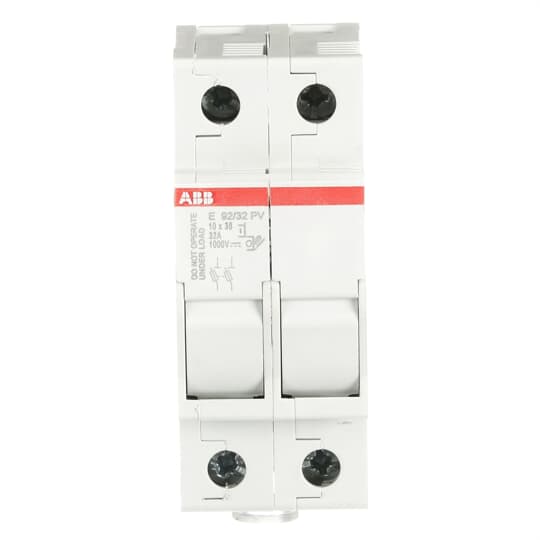

Base Fusível Bipolar Para Fusível Gpv Até 32A 1000Vcc E92/32PV 2CSM204703R1801 ABB
General Information
-
- Extended Product Type:
- E 92/32 PV
-
- Product ID:
- 2CSM204703R1801
-
- EAN:
- 8012542047032
-
- Catalog Description:
- E 92/32 PV Fuse disconnector
-
- Long Description:
- E 92/32 PV is a fuseholder for overcurrent and short circuit protection in PV applications. No blown fuse indicator.
Accessories
Technical
-
- Standards:
- IEC 60947-3
UL 4248-19
-
- Rated Voltage (Ur):
- 1000 V
-
- Rated Operational Voltage:
- DC-20B 1000 V DC
-
- Rated Insulation Voltage (Ui):
- 1 kV
-
- Rated Current (In):
- 32 A
-
- Power Loss:
- at Rated Operating Conditions per Pole 3 W
-
- Number of Protected Poles:
- 2
-
- Number of Poles:
- 2
-
- Tightening Torque:
- 2-2.5 N·m
-
- Utilization Category:
- Connecting and disconnecting under no-load conditions - occasional actuation (DC-20B)
-
- Fuse Type:
- gPV
-
- Lock Type:
- Padlockable
-
- Mounting Type:
- DIN-Rail
-
- Sealing Type:
- Sealing Wire
-
- Material of Conductor:
- Copper
-
- Options Provided:
- No
-
- Recommended Screw Driver:
- Pozidriv 2
-
- Remarks:
- For use with CU only 60°C, 75°C or 90°C wire
-
- Shock and Vibration Withstand acc. to IEC 61373:
- Category 1, Class B
-
- Connecting Capacity:
- Stranded 1.5…16 mm²
Rigid 1.5…25 mm²
-
- Fuse Size:
- 10x38 mm
-
- Operating Humidity (RHamb):
- max. 90% at +20 °C
50% at max. +40 °C
Environmental
-
- Ambient Air Temperature:
- Operation -5...+40 °C
Storage -25...+70 °C
-
- Degree of Protection:
- IP20
-
- Maximum Operating Altitude Permissible:
- 2000 m
-
- Resistance to Vibrations acc. to IEC 60068-2-6:
- 2 to 13 Hz x= 1 mm peak
13 to 100 Hz y= 0.7 g peak
-
- Resistance to Shock acc. to IEC 60068-2-27:
- 15g 18 shocks 11 ms
-
- RoHS Status:
- Following EU Directive 2011/65/EU
-
- RoHS Information:
- 2CSC444003D2701
-
- REACH Declaration:
- 9AKK108467A9482
-
- Environmental Information:
- See RoHS Information
-
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Technical UL/CSA
-
- Connecting Capacity UL/CSA:
- Stranded 16…3 AWG
Rigid 16...10 AWG
-
- Tightening Torque UL/CSA:
- 18-22 in·lb
Dimensions
-
- Width in Number of Modular Spacings:
- 2
-
- Product Net Width:
- 0.035 m
-
- Product Net Height:
- 0.085 m
-
- Product Net Depth / Length:
- 0.064 m
-
- Product Net Weight:
- 0.122 kg
-
- Built-In Depth (t2):
- 64 mm
Ordering
-
- Package Level 1 Units:
- box 3 piece
-
- Package Level 1 Gross Weight:
- 0.369 kg
-
- E-Number (Sweden):
- 2318054
Certificates and Declarations
-
- Certification Agency:
- CCC, EAC, UL
-
- Declaration of Conformity - CE:
- 2CSC444003D2701
-
- EAC Certificate:
- 9AKK107992A1034
-
- UL Certificate:
- 9AKK107992A1036
Installation
-
- Instructions and Manuals:
- No document needed
Popular Downloads
-
- Data Sheet, Technical Information:
- 2CSC444002B0204
Classifications
-
- ETIM 8:
- EC002705 - Holder for cylindrical fuse
-
- ETIM 9:
- EC002705 - Holder for cylindrical fuse
-
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
-
- WEEE B2C / B2B:
- Business To Consumer
-
- CN8:
- 85351000
-
- UNSPSC:
- 39122233
-
- eClass:
- V11.0 : 27142121
-
- IDEA Granular Category Code (IGCC):
- 5291 >> Fuse switch disconnector
-
- Object Classification Code:
- F
